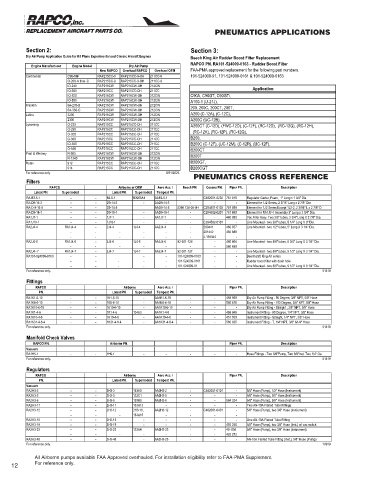

Page 14 - Rapco Catalog

PNEUMATICS APPLICATIONS

Section 2: Section 3:
Dry Air Pump Application Guide for Kit Plane Experimental and Classic Aircraft Engines Beech King Air Rudder Boost Filter Replacement
RAPCO PN. RA101-524009-0163 - Rudder Boost Filter
Engine Manufacturer Engine Model Dry Air Pump
New RAPCO Overhaul RAPCO Overhaul OEM FAA-PMA approved replacement for the following part numbers.
Continental C90-16F RAP215CC-9 RAP215CC-9-OH 211CC-9 101-524009-91, 101-524009-0161 & 101-524009-0163
O-200-A thru -C RAP215CC-9 RAP215CC-9-OH 211CC-9
IO-240 RAP216CW RAP216CW-OH 212CW Application
IO-360 RAP215CC RAP215CC-OH 211CC
IO-520 RAP216CW RAP216CW-OH 212CW C90A, C90GT, C90GTi,
IO-550 RAP216CW RAP216CW-OH 212CW A100-1 (U-21J),
Franklin 6A-235-B RAP216CW RAP216CW-OH 212CW 200, 200C, 200CT, 200T,
6A-350-C RAP216CW RAP216CW-OH 212CW
Jabiru 2200 RAP216CW RAP216CW-OH 212CW A200 (C-12A), (C-12C),
2300 RAP216CW RAP216CW-OH 212CW A200C (UC-12B),
Lycoming O-235 RAP215CC RAP215CC-OH 211CC A200CT (C-12D), (FWC-12D), (C-12F), (RC-12D), (RC-12G), (RC-12H),
O-290 RAP215CC RAP215CC-OH 211CC
O-320 RAP215CC RAP215CC-OH 211CC (RC-12K), (RC-12P), (RC-12Q),
O-360 RAP215CC RAP215CC-OH 211CC B200,
IO-360 RAP215CC RAP215CC-OH 211CC B200C (C-12F), (UC-12M), (C-12R), (UC-12F),
O-540 RAP215CC RAP215CC-OH 211CC B200CT
Pratt & Whitney R-985 RAP216CW RAP216CW-OH 212CW
R-1340 RAP216CW RAP216CW-OH 212CW B200T
Rotax 912 RAP215CC RAP215CC-OH 211CC B200GT,
914 RAP215CC RAP215CC-OH 211CC B200CGT
For reference only. 8/31/2023 PNEUMATICS CROSS REFERENCE
Filters
RAPCO Airborne or OEM Aero Acc. / Beech PN. Cessna PN. Piper PN. Description
Latest PN. Superseded Latest PN. Superseded Tempest PN.
RA-B3-5-1 - - B3-5-1 B3005A1 AAB3-5-1 - C482001-0202 751 815 Regulator Garter, Foam, 1" Long x 1 3/4" Dia.
RA-D9-14-3 - - D9-14-3 - AAD9-14-3 - - - Element for 1J2 Series, 2 3/16" Long x 2 7/8" Dia
RA-D-9-14-5 - - D9-14-5 AAD9-14-5 8398 136-05-0H C294501-0103 757 899 Element for 1J2 Series Except 1J2-2, 2 3/16" L x 2 7/8" D
RA-D9-18-1 - - D9-18-1 - AAD9-18-1 - C294502-0201 757 899 Element for RA1J7-1 Assembly 3" Long x 3 1/4" Dia.
RA1J7-1 - - 1J7-1 - AA1J7-1 - - 460 888 Vac.Filter Assy. Two 3/8" tubes, 3 3/4" Long X 2 7/8" Dia.
RA1J10-1 - - 1J10-1 - - - C294502-0101 - Line Mounted - two 3/8" tubes, 5 1/4" Long X 3" Dia.
RA2J4-4 RA1J4-4 - 2J4-4 1J4-4 AA2J4-4 - 200441 460 857 Line Mounted - two 1/2" tubes, 5" Long X 3 1/4" Dia.
- - - - - - 201442 460 888
- - - - - - J-158444 -
RA2J4-6 RA1J4-6 - 2J4-6 1J4-6 AA2J4-6 92-301-126 - 460 866 Line Mounted - two 5/8" tubes, 6 3/4" Long X 3 1/4" Dia.
- - - - - - - 560 689
RA2J4--7 RA1J4-7 - 2J4-7 1J4-7 AA2J4-7 92-301-127 - - Line Mounted - two 5/8" tubes, 5 1/2" Long X 3 1/4" Dia.
RA101-524009-0163 - - - - 101-524009-0163 - - Beechcraft King Air series
- - - - - 101-524009-0161 - - Rudder boost filter with drain hole
- - - - - 101-524009-91 - - Line Mounted - two 5/8" tubes, 5 1/2" Long X 3 1/4" Dia.
For reference only. 51419
Fittings
RAPCO Airborne Aero Acc. / Piper PN. Description
PN. Latest PN. Superseded Tempest PN.
RA1K1-6-10 - - 1K1-6-10 - AA1K1-6-10 - - 458 958 Dry Air Pump Fitting - 90 Degree, 3/8" NPT, 5/8" Hose
RA1K8-6-10 - - 1K8-6-10 - AA1K8-6-10 - - 560 810 Dry Air Pump Fitting - 152 Degree, 3/8" NPT, 5/8" Hose
RA1K10-6-10 - - 1K10-6-10 - AA1K10-6-10 - - - Dry Air Pump Fitting - Straight , 3/8" NPT, 5/8" Hose
RA1K1-4-6 - - 1K1-4-6 134A3 AA1K1-4-6 - - 458 945 Instrument Fitting - 90 Degree, 1/4" NPT, 3/8" Hose
RA1K10-4-6 - - 1K10-4-6 - AA1K10-4-6 - - 451 939 Instrument Fitting - Straight, 1/4" NPT, 3/8" Hose
RA1K31-4-6-4 - - 1K31-4-6-4 - AA1K31-4-6-4 - - 560 835 Instrument Fitting - T, 1/4" NPT, 3/8" &1/4" Hose
For reference only. 51419
Manifold Check Valves
RAPCO PN. Airborne PN. Piper PN. Description
Vacuum
RA1H5-1 - - 1H5-1 - - - - - Hose Fittings - Two 5/8"Pump, Two 3/8"Inst. Two 1/4" Ga.
For reference only. 51419
Regulators
RAPCO Airborne Aero Acc. / Piper PN. Description
PN. Latest PN. Superseded Tempest PN.
Vacuum
RA2H3-2 - - 2H3-2 133A3 AA2H3-2 - C482001-0101 - 5/8" Hose (Pump), 1/2" Hose (Instrument)
RA2H3-5 - - 2H3-5 133C1 AA2H3-5 - - - 5/8" Hose (Pump), 5/8" Hose (Instrument)
RA2H3-6 - - 2H3-6 133B3 AA2H3-6 - - 584 324 5/8" Hose (Pump), 5/8" Hose (Instrument)
RA2H3-11 - - 2H3-11 133A13 - - - - Two AN-10A Flaired Tube Fittings
RA2H3-12 - - 2H3-12 2H3-16, AA2H3-12 - C482001-0401 - 5/8" Hose (Pump), two 3/8" Hose (Instrument)
- - - 133A16 - - - -
RA2H3-15 - - 2H3-15 - - - - - One AN-10A Flaired Tube Fitting
RA2H3-19 - - 2H3-19 - - - - 492 240 5/8" Hose (Pump), two 3/8" Hose (Inst.) w/ vac switch
RA2H3-23 - - 2H3-23 133A4 AA2H3-23 - - 49 -056 5/8" Hose (Pump), two 3/8" Hose (Instrument)
- - - - - - - 492 272
RA2H3-48 - - 2H3-48 - AA2H3-23 - - - AN-10A Flaired Tube Fitting (Inst.), 5/8" Hose (Pump)
For reference only. 10919

All Airborne pumps available FAA Approved overhauled. For installation eligibility refer to FAA-PMA Supplement.
