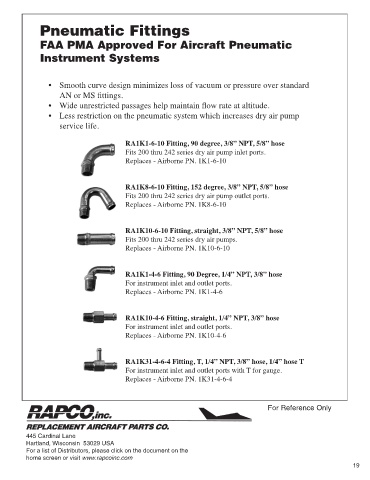

Page 21 - Rapco Catalog

Pneumatic Fittings

FAA PMA Approved For Aircraft Pneumatic
Instrument Systems

• Smooth curve design minimizes loss of vacuum or pressure over standard
AN or MS fittings.
• Wide unrestricted passages help maintain flow rate at altitude.
• Less restriction on the pneumatic system which increases dry air pump
service life.

RA1K1-6-10 Fitting, 90 degree, 3/8” NPT, 5/8” hose
Fits 200 thru 242 series dry air pump inlet ports.
Replaces - Airborne PN. 1K1-6-10

RA1K8-6-10 Fitting, 152 degree, 3/8” NPT, 5/8” hose
Fits 200 thru 242 series dry air pump outlet ports.
Replaces - Airborne PN. 1K8-6-10

RA1K10-6-10 Fitting, straight, 3/8” NPT, 5/8” hose
Fits 200 thru 242 series dry air pumps.
Replaces - Airborne PN. 1K10-6-10

RA1K1-4-6 Fitting, 90 Degree, 1/4” NPT, 3/8” hose
For instrument inlet and outlet ports.
Replaces - Airborne PN. 1K1-4-6

RA1K10-4-6 Fitting, straight, 1/4” NPT, 3/8” hose
For instrument inlet and outlet ports.
Replaces - Airborne PN. 1K10-4-6

RA1K31-4-6-4 Fitting, T, 1/4” NPT, 3/8” hose, 1/4” hose T
For instrument inlet and outlet ports with T for gauge.
Replaces - Airborne PN. 1K31-4-6-4

For Reference Only
