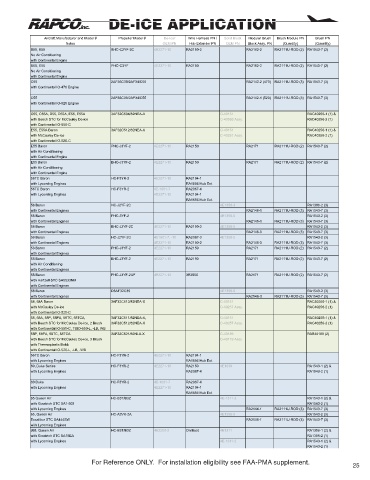

Page 27 - Rapco Catalog

DE-ICE APPLICATION
RAPCO,inc.
Aircraft Manufacturer and Model # Propeller Model # De-Icer Wire Harness PN / Solid Block Modular Brush Brush Module PN Brush PN
Notes OEM PN Hub Extender PN OEM PN Block Assy. PN (Quantity) (Quantity)
B55, E55 BHC-C2YF-2C 4E2271-10 RA2150-2 RA2162-2 RA2111U-ROD (2) RA1543-7 (2)
No Air Conditioning
with Continental Engine
B55, E55 PHC-C3YF 4E2271-10 RA2150 RA2162-2 RA2111U-ROD (2) RA1543-7 (2)
No Air Conditioning
with Continental Engine
C55 2AF36C39/2AF34/C55 RA2142-2 (470) RA2111U-ROD (3) RA1543-7 (3)
with Continental IO-470 Engine
C55 2AF36C39/2AF34/C55 RA2142-1 (520) RA2111U-ROD (3) RA1543-7 (3)
with Continental IO-520 Engine
C55, C55A, D55, D55A, E55, E55A 3AF32C504/82NEA-X C-40151 RAC40256-1 (1) &
with Beech STC for McCauley De-ice C-40593 Assy. RAC40256-2 (1)
with Continental IO-550-C
E55, E55A Baron 3AF32C512/82NEA-X C-40151 RAC40256-1 (1) &
with McCauley De-ice C-40257 Assy. RAC40256-2 (1)
with Continental IO-520-C
E55 Baron PHC-J3YF-2 4E2271-10 RA2150 RA2171 RA2111U-ROD (2) RA1543-7 (2)
with Air Conditioning
with Continental Engine
E55 Baron BHC-J3YF-2 4E2271-10 RA2150 RA2171 RA2111U-ROD (2) RA1543-7 (2)
with Air Conditioning
with Continental Engine
56TC Baron HC-F3YR-2 4E2271-10 RA2194-1
with Lycoming Engines RA1656 Hub Ext.
56TC Baron HC-F3YR-2 4E-1601-7 RA2067-4
with Lycoming Engines 4E2271-10 RA2194-1
RA1656 Hub Ext.
58 Baron HC-J2YF-2C 4E1350-3 RA1306-2 (3)
with Continental Engines RA2146-1 RA2111U-ROD (3) RA1543-7 (3)
58 Baron PHC-3YF-2 4E1350-5 RA1543-2 (3)
with Continental Engines RA2146-1 RA2111U-ROD (3) RA1543-7 (3)
58 Baron BHC-J2YF-2C 4E2271-10 RA2150-2 4E1350-5 RA1543-2 (3)
with Continental Engines RA2146-3 RA2111U-ROD (3) RA1543-7 (3)
58 Baron HC-J2YF-2C 4E1601-7, -10 RA2067-3 4E1350-5 RA1543-2 (3)
with Continental Engines 4E2271-10 RA2150-2 RA2146-3 RA2111U-ROD (3) RA1543-7 (3)
58 Baron PHC-J3YF-2 4E2271-10 RA2150 RA2171 RA2111U-ROD (2) RA1543-7 (2)
with Continental Engines
58 Baron BHC-J3YF-2 4E2271-10 RA2150 RA2171 RA2111U-ROD (2) RA1543-7 (2)
with Air Conditioning
with Continental Engines
58 Baron PHC-J3YF-2UF 4E2271-13 3E2050 RA2171 RA2111U-ROD (2) RA1543-7 (2)
with Hartzell STC SA5533NM
with Continental Engines
58 Baron D3AF32C35 4E1350-5 RA1543-2 (3)
with Continental Engines RA2146-3 RA2111U-ROD (3) RA1543-7 (3)
58, 58A Baron 3AF32C512/82NEA-X C-40151 RAC40256-1 (1) &
with McCauley De-ice C-40257 Assy. RAC40256-2 (1)
with Continental IO-520-C
58, 58A, 58P, 58PA, 58TC, 58TCA, 3AF32C511/82NEA-X, C-40151 RAC40256-1 (1) &
with Beech STC for McCauley De-ice, 2 Brush 3AF32C512/82NEA-X C-40257 Assy. RAC40256-2 (1)
with Continental IO-550-C, TSIO-550-L, -LB, WB
58P, 58PA, 58TC, 58TCA 3AF32C521/82NLA-X C-40189 RAB40189 (2)
with Beech STC for McCauley De-ice, 3 Brush C-40179 Assy.
with Thermoplastic Bolck
with Continental IO-520-L, -LB, -WB
56TC Baron HC-F3YR-2 4E2271-10 RA2194-1
with Lycoming Engines RA1656 Hub Ext.
60, Duke Series HC-F3YR-2 4E2271-10 RA2150 4E1639 RA1543-1 (2) &
with Lycoming Engines RA2067-4 RA1543-2 (1)
60 Duke HC-F3YR-2 4E-1601-7 RA2067-4
with Lycoming Engines 4E2271-10 RA2194-1
RA1656 Hub Ext.
65 Queen Air HC-B3T/B3Z 4E-1311-2 RA1543-1 (2) &
with Goodrich STC SA1-503 RA1543-2 (1)
with Lycoming Engines RA2144-1 RA2111U-ROD (3) RA1543-7 (3)
65, Queen Air HC-A3VK-2A 4E1350-5 RA1543-2 (3)
Excalibur STC SA444SW RA2146-1 RA2111U-ROD (3) RA1543-7 (3)
with Lycoming Engines
J65, Queen Air HC-B3T/B3Z 4E2200-3 On Boot 4E1311 RA1306-1 (2) &
with Goodrich STC SA15EA RA1306-2 (1)
with Lycoming Engines 4E-1311-2 RA1543-1 (2) &
RA1543-2 (1)
RA2144-1 RA2111U-ROD (3) RA1543-7 (3)
For Reference ONLY. For installation eligibility see FAA-PMA supplement.
25
