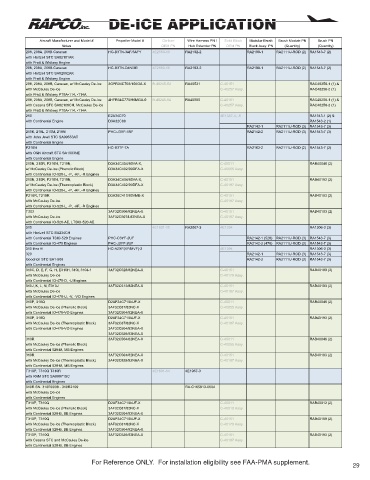

Page 31 - Rapco Catalog

DE-ICE APPLICATION
RAPCO,inc.

Aircraft Manufacturer and Model # Propeller Model # De-Icer Wire Harness PN / Solid Block Modular Brush Brush Module PN Brush PN
Notes OEM PN Hub Extender PN OEM PN Block Assy. PN (Quantity) (Quantity)
208, 208A, 208B Caravan HC-B3TN-3AF/3AFY 4E2560-10 RA2192-2 RA2190-1 RA2111U-ROD (2) RA1543-7 (2)
with Hartzell STC SA02181AK
with Pratt & Whitney Engine
208, 208A, 208B Caravan HC-B3TN-D4N/3R 4E2560-10 RA2192-2 RA2190-1 RA2111U-ROD (2) RA1543-7 (2)
with Hartzell STC SA02092AK
with Pratt & Whitney Engine
208, 208A, 208B, Caravan, w/ McCauley De-ice 3GFR34C703/106GA-X B-40245-54 RA40531 C-40151 RAC40256-1 (1) &
with McCauley De-ice C-40257 Assy. RAC40256-2 (1)
with Pratt & Whitney PT6A-114, -114A
208, 208A, 208B, Caravan, w/ McCauley De-ice 4HFR34C775/96MGA-0 B-40245-54 RA40585 C-40151 RAC40256-1 (1) &
with Cessna STC SA02168CH, McCauley De-ice C-40257 Assy. RAC40256-2 (1)
with Pratt & Whitney PT6A-114, -114A
210 E2A34C70 4E1387-4, -6 RA1543-1 (2) &
with Continental Engine D3A32C88 RA1543-2 (1)
RA2142-1 RA2111U-ROD (3) RA1543-7 (3)
210K, 210L, 210M, 210N PHC-J3YF-1RF RA2142-2 RA2111U-ROD (3) RA1543-7 (3)
with John Jewll STC SA00553AT
with Continental Engine
P210N HC-B3TF-7A RA2162-2 RA2111U-ROD (2) RA1543-7 (2)
with O&N Aircraft STC SA1003NE
with Continental Engine
210N, 210R, P210N, T210N, D3A34C404/80VA-X, C-40011 RAB40046 (2)
w/ McCauley De-ice (Phenolic Block) D3A34C402/90DFA-X C-40055 Assy.
with Continental IO-520-L, -P, -AF, -R Engines
210N, 210R, P210N, T210N, D3A34C404/80VA-X, C-40151 RAB40193 (2)
w/ McCauley De-ice (Thermoplastic Block) D3A34C402/90DFA-X C-40187 Assy.
with Continental IO-520-L, -P, -AF, -R Engines
P210R, T210R D3A36C410/80VMB-X C-40151 RAB40193 (2)
with McCauley De-ice C-40187 Assy.
with Continental IO-520-L, -P, -AF, -R Engines
T303 3AF32C506/82NEA-X C-40151 RAB40193 (2)
with McCauley De-ice 3AF32C507/L82NEA-X C-40187 Assy.
with Continental IO-520-AE, LTSIO-520-AE
310 4E1601-10 RA2067-3 4E1294 RA1306-3 (3)
with Hartzell STC SA234CH
with Continental TSIO-520 Engines PHC-C3YF-2UF RA2142-1 (520) RA2111U-ROD (3) RA1543-7 (3)
with Continental IO-470 Engines PHC-J3YF-2UF RA2142-2 (470) RA2111U-ROD (3) RA1543-7 (3)
310 thru H HC-A2XF(VF/MVF)-2 4E1294 RA1306-3 (3)
320 RA2142-1 RA2111U-ROD (3) RA1543-7 (3)
Goodrich STC SA1-506 RA2142-2 RA2111U-ROD (3) RA1543-7 (3)
with Continental Engines
310C, D, E, F, G, H, E310H, 310I, 310J-1 3AF32C528/82NEA-X C-40151 RAB40189 (2)
with McCauley De-ice C-40179 Assy.
with Continental IO-470-D, -U Engines
310J, K, L, N, E310J 3AF32C512/82NEA-X C-40151 RAB40193 (2)
with McCauley De-ice C-40187 Assy.
with Continental IO-470-U, -V, -VO Engines
310P, 310Q D2AF34C71/84JF-X C-40011 RAB40046 (2)
with McCauley De-ice (Phenolic Block) 3AF32C87/82NC-X C-40055 Assy.
with Continental IO-470-VO Engines 3AF32C504/82NEA-X
310P, 310Q D2AF34C71/84JF-X C-40151 RAB40193 (2)
with McCauley De-ice (Thermoplastic Block) 3AF32C87/82NC-X C-40187 Assy.
with Continental IO-470-VO Engines 3AF32C504/82NEA-X
3AF32C528/82NEA-X
310R 3AF32C504/82NEA-X C-40011 RAB40046 (2)
with McCauley De-ice (Phenolic Block) C-40055 Assy.
with Continental 520-M, MB Engines
310R 3AF32C504/82NEA-X C-40151 RAB40193 (2)
with McCauley De-ice (Thermoplastic Block) 3AF32C528/82NEA-X C-40187 Assy.
with Continental 520-M, MB Engines
T310P, T310Q T310R 4E1601-14 4E1967-3
with RAM STC SA09971SC
with Continental Engines
310R SN. 310R0938 - 310R2109 RA-C165013-0604
with McCauley De-ice
with Continental Engines
T310P, T310Q D2AF34C71/84JF-X C-40011 RAB40012 (2)
with McCauley De-ice (Phenolic Block) 3AF32C87/82NC-X C-40010 Assy.
with Continental 520-B, BB Engines 3AF32C504/82NEA-X
T310P, T310Q D2AF34C71/84JF-X C-40151 RAB40189 (2)
with McCauley De-ice (Thermoplastic Block) 3AF32C87/82NC-X C-40179 Assy.
with Continental 520-B, BB Engines 3AF32C504/82NEA-X
T310P, T310Q 3AF32C528/82NEA-X C-40151 RAB40193 (2)
with Cessna STC and McCauley De-ice C-40187 Assy.
with Continental 520-B, BB Engines

For Reference ONLY. For installation eligibility see FAA-PMA supplement.
29
