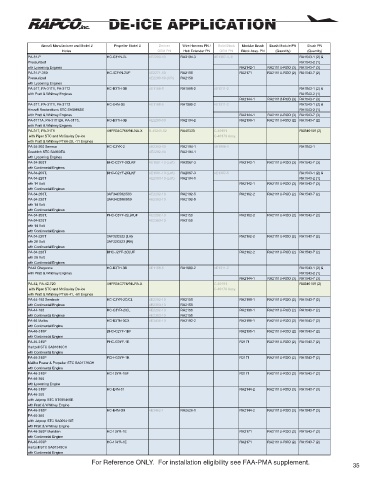

Page 37 - Rapco Catalog
P. 37

DE-ICE APPLICATION
          RAPCO,inc.


               Aircraft Manufacturer and Model #  Propeller Model #  De-Icer  Wire Harness PN /  Solid Block  Modular Brush  Brush Module PN  Brush PN
                      Notes                          OEM PN   Hub Extender PN  OEM PN  Block Assy. PN  (Quantity)  (Quantity)
          PA-31-P                   HC-C3YN-2L    4E2200-10  RA2194-3   4E1387-4,-6                 RA1543-1 (2) &
          Pressurized                                                                               RA1543-2 (1)
          wth Lycoming Engines                                                  RA2142-1  RA2111U-ROD (3)  RA1543-7 (3)
          PA-31-P-350               HC-IC3YN-2UF  4E2271-10   RA2150            RA2171   RA2111U-ROD (2)  RA1543-7 (2)
          Pressurized                             4E2200-10 (CR)  RA2150
          wth Lycoming Engines
          PA-31T, PA-31T1, PA-31T2  HC-B3TH-3B    4E1188-5   RA1989-2   4E1311-2                    RA1543-1 (2) &
          with Pratt & Whitney Engines                                                              RA1543-2 (1)
                                                                                RA2144-1  RA2111U-ROD (3)  RA1543-7 (3)
          PA-31T, PA-31T1, PA-31T2  HC-E4N-3B     4E1188-5   RA1989-2   4E1311-2                    RA1543-1 (2) &
          Aircraft Restorations STC SA0086SE                                                        RA1543-2 (1)
          with Pratt & Whitney Engines                                          RA2144-1  RA2111U-ROD (3)  RA1543-7 (3)
          PA-31T1A, PA-31T12A, PA-31T3,   HC-B3TH-3B  4E2200-10  RA2194-2       RA2190-1  RA2111U-ROD (2)  RA1543-7 (2)
          with Pratt & Whitney Engines
          PA-31T, PA-31T1           4HFR34C766/94LNA-X  B-40245-52  RA40330  C-40151                RAB40189 (2)
           with Piper STC and McCauley De-ice                           C-40179 Assy.
          with Pratt & Whitney PT6A-28, -11 Engines
          PA-34-200 Seneca          HC-C2YK-2     4E2303-10  RA2194-1   4E1908-1                    RA1543-1
          Goodrich STC SA900EA                    4E2292-10  RA2194-1
          wth Lycoming Engines
          PA-34-200T                BHC-C2YF-2CLKF  4E1601-10 (Left)  RA2067-3  RA2142-1  RA2111U-ROD (3)  RA1543-7 (3)
          wth Continental Engines
          PA-34-200T,               BHC-C2YF-2CLKF  4E1601-10 (Left)  RA2067-3  4E1387-5            RA1543-1 (2) &
          PA-34-220T                              4E2303-10 (Left)  RA2194-1                        RA1543-2 (1)
          wth 14 Volt                                                           RA2142-1  RA2111U-ROD (3)  RA1543-7 (3)
          wth Continental Engines
          PA-34-200T,               3AF34C502/503  4E2292-10  RA2192-5          RA2162-2  RA2111U-ROD (2)  RA1543-7 (2)
          PA-34-220T                3AF34C508/509  4E2303-10  RA2192-5
          wth 14 Volt
          wth Continental Engines
          PA-34-200T,               PHC-C3YF-2(L)KUF  4E2292-10  RA2150         RA2162-2  RA2111U-ROD (2)  RA1543-7 (2)
          PA-34-220T                              4E2303-10  RA2150
          wth 14 Volt
          wth Continental Engines
          PA-34-220T                3AF32C522 (LH)                              RA2162-2  RA2111U-ROD (2)  RA1543-7 (2)
          wth 28 Volt               3AF32C523 (RH)
          wth Continental Engines
          PA-34-220T                BHC-J2YF-2CLUF                              RA2162-2  RA2111U-ROD (2)  RA1543-7 (2)
          wth 28 Volt
          wth Continental Engines
          PA42 Cheyenne             HC-B3TH-3B    4E1188-5   RA1989-2   4E1311-2                    RA1543-1 (2) &
          with Pratt & Whitney Engines                                                              RA1543-2 (1)
                                                                                RA2144-1  RA2111U-ROD (3)  RA1543-7 (3)
          PA-42, PA-42-720          4HFR34C774/94LPA-X                  C-40151                     RAB40189 (2)
           with Piper STC and McCauley De-ice                           C-40179 Assy.
          with Pratt & Whitney PT6A-41, -61 Engines
          PA-44-180 Seminole        HC-C2YR-2C/CL  4E2292-10  RA2150            RA2190-1  RA2111U-ROD (2)  RA1543-7 (2)
          wth Continental Engines                 4E2303-10  RA2150
          PA-44-180                 HC-C3YR-2/CL  4E2292-10  RA2150             RA2190-1  RA2111U-ROD (2)  RA1543-7 (2)
          wth Continental Engines                 4E2303-10  RA2150
          PA-46 Malibu              HC-B3TN-3CX   4E3436-10  RA2192-2           RA2190-1  RA2111U-ROD (2)  RA1543-7 (2)
          wth Continental Engine
          PA-46-310P                BHC-C2YF-1BF                                RA2190-1  RA2111U-ROD (2)  RA1543-7 (2)
          wth Continental Engine
          PA-46-310P                PHC-G3YF-1E                                 R2171    RA2111U-ROD (2)  RA1543-7 (2)
          Hartzell STC SA01616CH
          wth Continental Engine
          PA-46-310P                PCH-G3YF-1E                                 R2171    RA2111U-ROD (2)  RA1543-7 (2)
          Malibu Power & Propeller STC SA01770CH
          wth Continental Engine
          PA-46-310P                HC-12YR-1BF                                 R2171    RA2111U-ROD (2)  RA1543-7 (2)
          PA-46-350
          wth Lycoming Engine
          PA-46-310P                HC-E4N-31                                   RA2144-2  RA2111U-ROD (3)  RA1543-7 (3)
          PA-46-350
          with Jetprop STC ST00541SE
          wth Pratt & Whitney Engine
          PA-46-310P                HC-E4N-3M     4E3462-1   RA2626-1           RA2144-2  RA2111U-ROD (3)  RA1543-7 (3)
          PA-46-350
          with Jetprop STC SA00541SE
          wth Pratt & Whitney Engine
          PA-46-350P Meridian       HC-13YR-1E                                  RA2171   RA2111U-ROD (2)  RA1543-7 (2)
          wth Continental Engine
          PA-46-350P                HC-13YR-1E                                  RA2171   RA2111U-ROD (2)  RA1543-7 (2)
          Hartzell STC SA01340CH
          wth Continental Engine
                               For Reference ONLY.  For installation eligibility see FAA-PMA supplement.
                                                                                                                      35
   32   33   34   35   36   37   38   39   40   41   42
