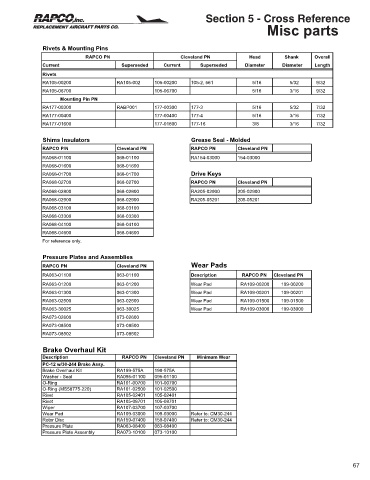

Page 69 - Rapco Catalog

Section 5 - Cross Reference
Misc parts

Rivets & Mounting Pins
RAPCO PN Cleveland PN Head Shank Overall
Current Superseded Current Superseded Diameter Diameter Length
Rivets
RA105-00200 RA105-002 105-00200 105-2, 561 5/16 5/32 9/32
RA105-06700 105-06700 5/16 3/16 9/32
Mounting Pin PN
RA177-00300 RABP001 177-00300 177-3 5/16 5/32 7/32
RA177-00400 177-00400 177-4 5/16 3/16 7/32
RA177-01600 177-01600 177-16 3/8 3/16 7/32

Shims Insulators Grease Seal - Molded
RAPCO P/N Cleveland PN RAPCO PN Cleveland PN
RA068-01100 068-01100 RA154-03000 154-03000
RA068-01600 068-01600
RA068-01700 068-01700 Drive Keys
RA068-02700 068-02700 RAPCO PN Cleveland PN
RA068-02800 068-02800 RA205-02900 205-02900
RA068-02900 068-02900 RA205-05201 205-05201
RA068-03100 068-03100
RA068-03300 068-03300
RA068-04100 068-04100
RA068-04600 068-04600
For reference only.

Pressure Plates and Assemblies
RAPCO PN Cleveland PN Wear Pads
RA063-01100 063-01100 Description RAPCO PN Cleveland PN
RA063-01200 063-01200 Wear Pad RA109-00200 109-00200
RA063-01300 063-01300 Wear Pad RA109-00201 109-00201
RA063-02500 063-02500 Wear Pad RA109-01500 109-01500
RA063-30025 063-30025 Wear Pad RA109-03000 109-03000
RA073-02600 073-02600
RA073-08500 073-08500
RA073-08502 073-08502

Brake Overhaul Kit
Description RAPCO PN Cleveland PN Minimum Wear
PC-12 w/30-244 Brake Assy.
Brake Overhaul Kit RA199-575A 199-575A
Washer - Seal RA095-01100 095-01100
O-Ring RA101-00700 101-00700
O-Ring (MS58775-220) RA101-02500 101-02500
Rivet RA105-02401 105-02401
Rivet RA105-08701 105-08701
Wiper RA107-03700 107-03700
Wear Pad RA109-03000 109-03000 Refer to: CM30-244
Rotor Disc RA159-07400 159-07400 Refer to: CM30-244
Pressure Plate RA063-08400 063-08400
Pressure Plate Assembly RA073-10100 073-10100

67
