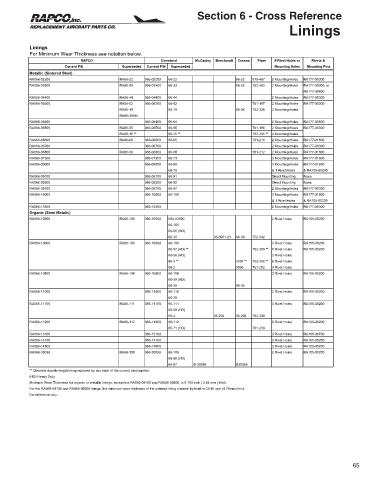

Page 67 - Rapco Catalog

Section 6 - Cross Reference
Linings

Linings
For Minimum Wear Thickness see notation below.
RAPCO Cleveland McCauley Beechcraft Cessna Piper # Rivet Holes or Rivets &
Current P/N Superseded Current P/N Superseded Mounting Holes Mounting Pins
Metallic (Sintered Steel)
RA066-02200 RA66-22 066-02200 66-22 66-22 579-467 2 Mounting Holes RA177-00300
RA066-03300 RA66-33 066-03300 66-33 66-33 752-363 2 Mounting Holes RA177-00300, or
RA177-00400
RA066-04400 RA66-44 066-04400 66-44 2 Mounting Holes RA177-00300
RA066-06200 RA66-62 066-06200 66-62 761-197 2 Mounting Holes RA177-00300
RA66-19 66-19 66-36 752-336 2 Mounting Holes
RA66-105M
RA066-06400 066-06400 66-64 2 Mounting Holes RA177-01600
RA066-06500 RA66-65 066-06500 66-65 761-196 2 Mounting Holes RA177-00300
RA66-15 ** 66-15 ** 752-335 ** 4 Mounting Holes
RA066-06600 RA66-66 066-06600 66-66 761-211 2 Mounting Holes RA177-01600
RA066-06700 066-06700 2 Mounting Holes RA177-00300
RA066-06800 RA66-68 066-06800 66-68 761-212 2 Mounting Holes RA177-01600
RA066-07300 066-07300 66-73 3 Mounting Holes RA177-01600
RA066-09000 066-09000 66-90 3 Mounting Holes RA177-01600
66-79 & 1 Rivet Holes & RA105-00200
RA066-09100 066-09100 66-91 Direct Mounting None
RA066-09200 066-09200 66-92 Direct Mounting None
RA066-09700 066-09700 66-97 2 Mounting Holes RA177-00300
RA066-10000 066-10000 66-100 3 Mounting Holes RA177-01600
& 1 Rivet Holes & RA105-00200
RA066-15300 066-15300 2 Mounting Holes RA177-00300
Organic (Semi Metalic)
RA066-10500 RA66-105 066-10500 066-03000 2 Rivet Holes RA105-00200
66-105
66-55 (HD)
66-30 36-8001-23 66-30 752-342
RA066-10600 RA66-106 066-10600 66-106 3 Rivet Holes RA105-00200
66-57 (HD) ** 752-309 ** 6 Rivet Holes RA105-00200
66-56 (HD) 3 Rivet Holes
66-3 ** 3007 ** 752-308 ** 6 Rivet Holes
66-2 3006 761-202 3 Rivet Holes
RA066-10800 RA66-108 066-10800 66-108 2 Rivet Holes RA105-00200
66-59 (HD)
66-35 66-35
RA066-11000 066-11000 66-110 2 Rivet Holes RA105-00200
66-39
RA066-11100 RA66-111 066-11100 66-111 3 Rivet Holes RA105-00200
66-58 (HD)
66-4 35-204 35-204 752-338
RA066-11200 RA66-112 066-11200 66-112 2 Rivet Holes RA105-00200
66-71 (HD) 761-239
RA066-13100 066-13100 3 Rivet Holes RA105-06700
RA066-14100 066-14100 3 Rivet Holes RA105-00200
RA066-14800 066-14800 3 Rivet Holes RA105-00200
RA066-30026 RA66-109 066-30026 66-109 2 Rivet Holes RA105-00200
66-88 (HD)
66-87 B-30026 B30026
** Obsolete double length lining replaced by two each of the current part number.
(HD) Heavy Duty
Minimum Wear Thickness for organic or metallic linings, except the RA066-09100 and RA066-09200, is 0.100 inch ( 2.54 mm ) thick.
For the RA066-09100 and RA066-09200 linings, the minimum wear thickness of the sintered lining material by itself is 0.030 inch (0.76mm) thick.
For reference only.
