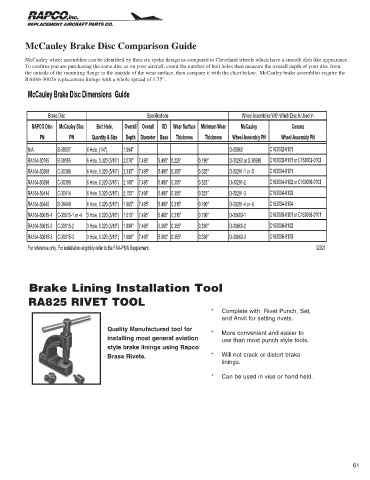

Page 63 - Rapco Catalog

McCauley Brake Disc Comparison Guide

McCauley wheel assemblies can be identified by their six spoke design as compared to Cleveland wheels which have a smooth dish like appearance.
To confirm you are purchasing the same disc as on your aircraft, count the number of bolt holes then measure the overall depth of your disc from
the outside of the mounting flange to the outside of the wear surface, then compare it with the chart below. McCauley brake assemblies require the
RA066-30026 replacement linings with a whole spread of 1.75”.
McCauley Brake Disc Dimensions Guide

Brake Disc Specifications Wheel Assemblies With Which Disc Is Used In
RAPCO Disc McCauley Disc Bolt Hole, Overall Overall OD Wear Surface Minimum Wear McCauley Cessna
PN PN Quantity & Size Depth Diameter Base Thickness Thickness Wheel Assembly PN Wheel Assembly PN

N/A B-30007 6 Hole, (1/4") 1.964" D-30063 C163002-0101
RA164-30195 B-30195 6 Hole, 0.320 (5/16") 2.070" 7.495" 5.490" 0.225" 0.190" D-30260 or D-30580 C163003-0101 or C163003-0102
RA164-30388 C-30388 6 Hole, 0.320 (5/16") 2.335" 7.495" 5.490" 0.355" 0.325" D-30291-1 or -5 C163004-0101

RA164-30398 C-30398 6 Hole, 0.320 (5/16") 2.100" 7.495" 5.490" 0.355" 0.325" D-30291-2 C163004-0102 or C163006-0103
RA164-30414 C-30414 6 Hole, 0.320 (5/16") 2.155" 7.495" 5.490" 0.355" 0.325" D-30291-3 C163004-0103
RA164-30440 B-30440 6 Hole, 0.320 (5/16") 1.965" 7.495" 5.490" 0.215" 0.190" D-30291-4 or -6 C163004-0104

RA164-30615-1 C-30615-1 or -4 3 Hole, 0.320 (5/16") 1.515" 7.495" 5.485" 0.215" 0.190" D-30600-1 C163005-0101 or C163006-0101
RA164-30615-2 C-30615-2 3 Hole, 0.320 (5/16") 1.890" 7.495" 5.500" 0.355" 0.330" D-30660-2 C163006-0102
RA164-30615-3 C-30615-3 3 Hole, 0.320 (5/16") 1.660" 7.495" 5.500" 0.355" 0.330" D-30660-3 C163006-0103
For reference only. For installation eligibility refer to the FAA-PMA Supplement. 32921

Brake Lining Installation Tool

RA825 RIVET TOOL
* Complete with: Rivet Punch, Set,
and Anvil for setting rivets.
Quality Manufactured tool for * More convenient and easier to
installing most general aviation use than most punch style tools.
style brake linings using Rapco
Brass Rivets. * Will not crack or distort brake
linings.

* Can be used in vise or hand held.

61
