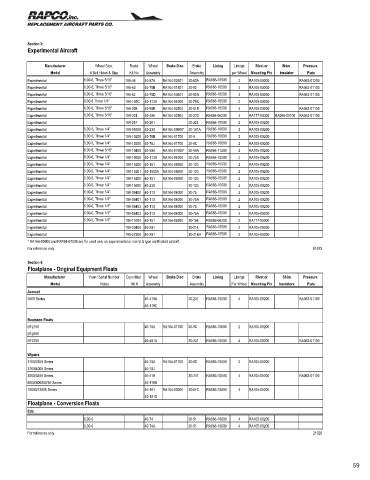

Page 61 - Rapco Catalog

Section 3:
Experimental Aircraft

Manufacturer Wheel Size, Brake Wheel Brake Disc Brake Lining Linings Rivet or Shim Pressure
Model # Bolt Holes & Size Kit No. Assembly Assembly per Wheel Mounting Pin Insulator Plate
Experimental 6.00-6, Three 5/16" 199-46 40-97A RA164-02601 30-63A RA066-10500 2 RA105-00200 RA063-01200
Experimental 6.00-6, Three 5/16" 199-60 40-75B RA164-01501 30-52 RA066-10500 4 RA105-00200 RA063-01100
Experimental 6.00-6, Three 5/16" 199-62 40-75D RA164-03601 30-52N RA066-10500 4 RA105-00200 RA063-01100
Experimental 6.00-6 Three 1/4" 199-105C 40-113X RA164-04000 30-75X RA066-10500 2 RA105-00200
Experimental 6.00-6, Three 5/16" 199-208 40-96E RA164-02504 30-61E RA066-10500 4 RA105-00200 RA063-01100
Experimental 6.00-6, Three 5/16" 199-224 40-406 RA164-02504 30-233 RA066-06200 4 RA177-00300 RA068-01100 RA063-01100
Experimental 199-251 40-281 30-224 RA066-10500 2 RA105-00200
Experimental 5.00-5, Three 1/4" 199-09300 40-230 RA164-09900* 30-181A RA066-10600 2 RA105-00200
Experimental 5.00-5, Three 1/4" 199-10200 40-78B RA164-01700 30-9 RA066-10600 2 RA105-00200
Experimental 5.00-5, Three 1/4" 199-10300 40-78J RA164-01700 30-9C RA066-10600 2 RA105-00200
Experimental 6.00-6, Three 5/16" 199-10400 40-59A RA164-07500* 30-59A RA066-11200 2 RA105-00200
Experimental 6.00-6, Three 1/4" 199-10500 40-113X RA164-04000 30-75X RA066-10500 2 RA105-00200
Experimental 5.00-5, Three 1/4" 199-15200 40-151 RA164-08500 30-133 RA066-10500 2 RA105-00200
Experimental 5.00-5, Three 1/4" 199-15201 40-1501A RA164-08500 30-133 RA066-10500 2 RA105-00200
Experimental 5.00-5, Three 1/4" 199-15200 40-151 RA164-08500 30-133 RA066-10500 2 RA105-00200
Experimental 5.00-5, Three 1/4" 199-15600 40-230 30-133 RA066-10600 2 RA105-00200
Experimental 6.00-6, Three 1/4" 199-08400 40-113 RA164-04000 30-75 RA066-10500 2 RA105-00200
Experimental 6.00-6, Three 1/4" 199-08401 40-113 RA164-04000 30-75A RA066-10500 2 RA105-00200
Experimental 6.00-6, Three 1/4" 199-08403 40-113 RA164-04000 30-75 RA066-10500 2 RA105-00200
Experimental 6.00-6, Three 1/4" 199-08403 40-113 RA164-04000 30-75A RA066-10500 2 RA105-00200
Experimental 5.00-5, Three 1/4" 199-19700 40-151 RA164-08500 30-164 RA066-06200 2 RA177-00300
Experimental 199-20400 40-281 30-214 RA066-10500 2 RA105-00200
Experimental 199-22300 40-281 30-214B RA066-10500 2 RA105-00200
* RA164-09900 and RA164-07500 are for used only on experimental or non U.S type certificated aircraft.
For reference only. 61623

Section 4:
Floatplane - Original Equipment Floats
Manufacturer Year / Serial Number Conv/Mod Wheel Brake Disc Brake Lining Linings Rivet or Shim Pressure
Model Notes Kit # Assembly Assembly Per Wheel Mounting Pin Insulators Plate
Aerocet
3500 Series 40-418A 30-241 RA066-10500 4 RA105-00200 RA063-01100
40-118C

Baumann Floats
BF2150 40-78A RA164-01700 30-9C RA066-10600 2 RA105-00200
BF2550
BF2750 40-481A 30-241 RA066-10500 4 RA105-00200 RA063-01100
Wipaire
2100/2350 Series 40-78A RA164-01700 30-9C RA066-10600 2 RA105-00200
3700/4000 Series 40-78J
3000/3450 Series 40-418 30-241 RA066-10500 4 RA105-00200 RA063-01100
6000/8000/8750 Series 40-118B
10000/13000 Series 40-101 RA164-03006 30-67C RA066-10800 4 RA105-00200
40-101D
Floatplane - Conversion Floats
Edo
6.00-6 40-74 30-51 RA066-10600 4 RA105-00200
6.00-6 40-74A 30-51 RA066-10600 4 RA105-00200
For reference only. 21020

59
