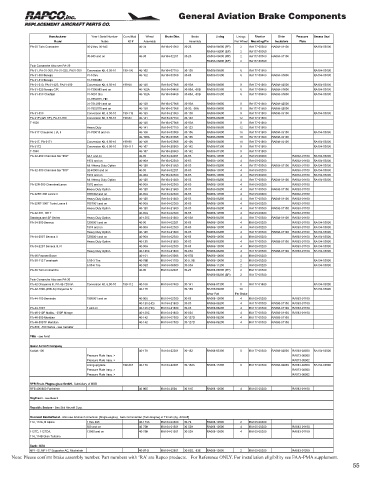

Page 57 - Rapco Catalog

General Aviation Brake Components

Manufacturer Year / Serial Number Conv/Mod Wheel Brake Disc Brake Lining Linings Rivet or Shim Pressure Grease Seal
Model Notes Kit # Assembly Assembly Per Wheel Mounting Pin Insulators Plate
PA-30 Twin Comanche 30-2 thru 30-845 40-34 RA164-01000 30-23 RA066-06500 (PP) 2 RA177-00300 RA068-01100 RA154-03000
RA066-06200 (BP) 2 RA177-00300
30-845 and on 40-90 RA164-02201 30-23 RA066-06500 (PP) 2 RA177-00300 RA068-01100
RA066-06200 (BP) 2 RA177-00300
Twin Comanche Also see PA-39
PA-31, PA-31-300, PA-31-325, PA31-350 Conversion Kit, 6.50-10 199-100 40-162 RA164-07700 30-138 RA066-06800 6 RA177-01600 RA154-03000
PA-31-300 Navajo 31-5 thru 40-102 RA164-03506 30-68 RA066-03300 6 RA177-00400 RA068-01600 RA154-03000
PA-31-310 Navajo 31-7300962
PA-31-310, PA-31-325, PA31-350 Conversion Kit, 6.50-10 199-66 40-130 RA164-07906 30-95A RA066-06600 8 RA177-01600 RA068-02800 RA154-03000
PA-31-325 Navajo C/R 31-7300963 and on 40-102A RA164-04406 30-68A, -68B RA066-03300 6 RA177-00400 RA068-01600 RA154-03000
PA-31-350 Chieftain 31-5001 thru 40-102A RA164-04406 30-68A, -68B RA066-03300 6 RA177-00400 RA068-01600 RA154-03000
31-7652075, HD
31-7812001 and on 40-130 RA164-07906 30-95A RA066-06600 8 RA177-01600 RA068-02800
31-7652076 and on 40-130 RA164-07906 30-95, -95A RA066-06600 8 RA177-01600 RA068-02800
PA-31-350 Conversion Kit, 6.50-10 199-119 40-195 RA164-21900 30-158 RA066-06800 8 RA177-01600 RA068-03100 RA154-03000
PA-31P (425 HP), PA-31-350 Conversion Kit, 6.50-10 199-83 40-141 RA164-07700 30-123 RA066-06800 12 RA177-01600
T-1020 40-130 RA164-07906 30-95A RA066-06600 8 RA177-01600
Heavy Duty 40-141 RA164-07700 30-123 RA066-06800 12 RA177-01600
PA-31T Cheyenne l, lA, ll 31-780015 and on 40-106 RA164-03906 30-106 RA066-06800 16 RA177-01600 RA068-03100 RA154-03000
40-106A RA164-03906 30-106 RA066-06800 16 RA177-01600 RA068-03100
PA-31T, PA-31T1 Conversion Kit, 6.50-10 199-89 40-106 RA164-03906 30-106 RA066-06800 16 RA177-01600 RA068-03100 RA154-03000
PA-31T2 Conversion Kit, 6.50-10 199-111 40-167 RA164-20600 30-142 RA066-07300 8 RA177-01600 RA154-03000
T-1040 40-167 RA164-20600 30-142 RA066-07300 8 RA177-01600
PA-32-260 Cherokee Six "260" 32-1 and on 40-90 RA164-02201 30-65 RA066-10500 4 RA105-00200 RA063-01100 RA154-03000
1974 and on 40-90A RA164-02300 30-65 RA066-10500 4 RA105-00200 RA063-01100 RA154-03000
All / Heavy Duty Option 40-120 RA164-21600 30-83 RA066-06200 4 RA177-00300 RA068-01100 RA063-01100 RA154-03000
PA-32-300 Cherokee Six "300" 32-40000 and on 40-90 RA164-02201 30-65 RA066-10500 4 RA105-00200 RA063-01100 RA154-03000
1974 and on 40-90A RA164-02300 30-65 RA066-10500 4 RA105-00200 RA063-01100 RA154-03000
All / Heavy Duty Option 40-120 RA164-21600 30-83 RA066-06200 4 RA177-00300 RA068-01100 RA063-01100 RA154-03000
PA-32R-300 Cherokee/Lance 1976 and on 40-90A RA164-02300 30-65 RA066-10500 4 RA105-00200 RA063-01100
Heavy Duty Option 40-120 RA164-21600 30-83 RA066-06200 4 RA177-00300 RA068-01100 RA063-01100
PA-32RT-300 Lance ll 7885002 and on 40-90A RA164-02300 30-65 RA066-10500 4 RA105-00200 RA063-01100
Heavy Duty Option 40-120 RA164-21600 30-83 RA066-06200 4 RA177-00300 RA068-01100 RA063-01100
PA-32RT-300T Turbo Lance ll 7887001 and on 40-90A RA164-02300 30-65 RA066-10500 4 RA105-00200 RA063-01100
Heavy Duty Option 40-120 RA164-21600 30-83 RA066-06200 4 RA177-00300 RA068-01100 RA063-01100
PA-32-301, 301T 40-90A RA164-02300 30-65 RA066-10500 4 RA105-00200 RA063-01100
Saratoga and SP Series Heavy Duty Option 40-120C RA164-21600 30-83A RA066-06200 4 RA177-00300 RA068-01100 RA063-01100
PA-34-200 Seneca 7250001 and on 40-90 RA164-02201 30-65 RA066-10500 4 RA105-00200 RA063-01100 RA154-03000
1974 and on 40-90A RA164-02300 30-65 RA066-10500 4 RA105-00200 RA063-01100 RA154-03000
Heavy Duty Option 40-120 RA164-21600 30-83 RA066-06200 4 RA177-00300 RA068-01100 RA063-01100 RA154-03000
PA-34-200T Seneca ll 7250001 and on 40-90A RA164-02300 30-65 RA066-10500 4 RA105-00200 RA063-01100 RA154-03000
Heavy Duty Option 40-120 RA164-21600 30-83 RA066-06200 4 RA177-00300 RA068-01100 RA063-01100 RA154-03000
PA-34-220T Seneca lll, lV 40-90A RA164-02300 30-65 RA066-10500 4 RA105-00200 RA063-01100 RA154-03000
Heavy Duty Option 40-120C RA164-21600 30-83A RA066-06200 4 RA177-00300 RA068-01100 RA063-01100 RA154-03000
PA-36 Pawnee Brave 40-101 RA164-03006 30-67B RA066-10800 4 RA105-00200
PA-38-112 Tomahawk 5.00-5 Tire 40-78B RA164-01700 30-9, 9B RA066-10600 2 RA105-00200 RA154-03000
6.00-6 Tire 40-59D RA164-06900 30-53A RA066-11200 2 RA105-00200 RA154-03000
PA-39 Twin Comanche 40-90 RA164-02201 30-23 RA066-06500 (PP) 2 RA177-00300
RA066-06200 (BP) 2 RA177-00300
Twin Comanche Also see PA-30
PA-42 Cheyenne lll, PA-42-720 lllA Conversion Kit, 6.50-10 199-112 40-166 RA164-07400 30-141 RA066-07300 8 RA177-01600 RA154-03000
PA-42-1000 (400LS) Cheyenne lV 40-176 30-150 RA109-00200 30 RA154-03000
Wear Pad Per Brake
PA-44-180 Seminole 7995001 and on 40-90A RA164-02300 30-65 RA066-10500 4 RA105-00200 RA063-01100
40-120 (HD) RA164-21600 30-83 RA066-06200 4 RA177-00300 RA068-01100 RA063-01100
PA-44-180T 1 and on 40-120 (HD) RA164-21600 30-83 RA066-06200 4 RA177-00300 RA068-01100 RA063-01100
PA-46-310P Malibu, -350P Mirage 40-120C RA164-21600 30-83A RA066-06200 4 RA177-00300 RA068-01100 RA063-01100
PA-46-500 Meridian 40-142 RA164-07800 30-127D RA066-06200 4 RA177-00300 RA068-01100
PA-46-500TP Meridian 40-142 RA164-07800 30-127D RA066-06200 4 RA177-00300 RA068-01100
PA-600, -700 Series - see Aerostar
Pitts - see Aviat
Quest Aircraft Company
Kodiak 100 40-179 RA164-22201 30-182 RA066-03300 8 RA177-00300 RA068-02800 RA063-02500 RA154-03000
Pressure Plate Assy. > RA073-08500
Pressure Plate Assy. > RA073-08502
Lining upgrade 199-281 40-179 RA164-22201 30-182A RA066-15300 8 RA177-00300 RA068-02800 RA063-02500 RA154-03000
Pressure Plate Assy. > RA073-08500
Pressure Plate Assy. > RA073-08502
RFB Rhein-Flugzeugbau GmbH - Subsidiary of MBB
RFB 400/600 Fantreiner 40-96E RA164-2504 30-61E RA066-10500 4 RA105-00200 RA063-01100
Raytheon - see Beech
Republic Seabee - See Stol Aircraft Corp.
Rockwell International - Also see Grumann American (Single engine), Aero Commander (Twin Engine) or Thrush (Ag. Aircraft)
112, 112A, B Alpine 1 thru 495 40-113A RA164-04300 30-79 RA066-10500 2 RA105-00200
500 and on 40-75H RA164-01501 30-52H RA066-10500 4 RA105-00200 RA063-01100
112TC, 112TCA, 13000 and on 40-75H RA164-01501 30-52H RA066-10500 4 RA105-00200 RA063-01100
114, 114B Gran Turismo
Saab - USA
MF1-15, MF1-17 Supporter AC, Mushshak 40-97-D RA164-02601 30-63D, -63E RA066-10500 2 RA105-00200 RA063-01200
Note: Please confirm brake assembly number. Part numbers with ‘RA’ are Rapco products. For Reference ONLY. For installation eligibility see FAA-PMA supplement. Note: Please confirm brake assembly number. Part numbers with ‘RA’ are Rapco products. For Reference ONLY. For installation eligibility see FAA-PMA supplement.
