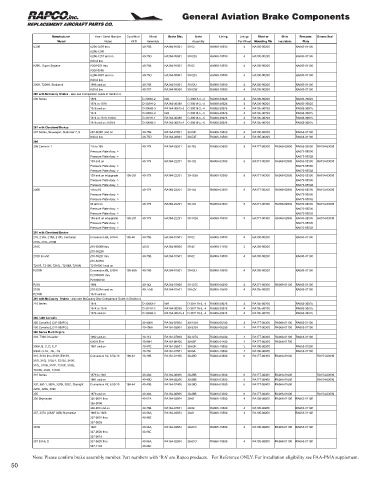

Page 52 - Rapco Catalog

General Aviation Brake Components

Manufacturer Year / Serial Number Conv/Mod Wheel Brake Disc Brake Lining Linings Rivet or Shim Pressure Grease Seal
Model Notes Kit # Assembly Assembly Per Wheel Mounting Pin Insulators Plate
U206 U206-0276 thru 40-75B RA164-01501 30-52 RA066-10500 4 RA105-00200 RA063-01100
U206-1256
U206-1257 and on 40-75D RA164-03601 30-52N RA066-10500 4 RA105-00200 RA063-01100
8.00-6 tire
P206, Super Skylane P206-001 thru 40-75B RA164-01501 30-52 RA066-10500 4 RA105-00200 RA063-01100
P206-0566
U206-0567 and on 40-75D RA164-03601 30-52N RA066-10500 4 RA105-00200 RA063-01100
8.00-6 tire
206H, T206H, Stationair 1996 and on 40-75B RA164-01501 30-52U RA066-10500 4 RA105-00200 RA063-01100
8.00-6 tire 40-75T RA164-08300 30-52W RA066-10500 4 RA105-00200 RA063-01100
206 with McCauley Brakes - also see Comparison Guide in Section 4.
206 Series 1974 D-30063-2 N/A C-30018-3, -4 RA066-30026 4 RA105-00200 RA063-30025
1974 to 1978 D-30291-2 RA164-30398 C-30018-3, -4 RA066-30026 4 RA105-00200 RA063-30025
1978 and on D-30660-3 RA164-30615-3 C-30018-3, -4 RA066-30026 4 RA105-00200 RA063-30025
1974 D-30063-4 N/A C-30018-5, -6 RA066-30026 4 RA105-00200 RA063-30025
1974 to 1978, 8.00-6 D-30291-1 RA164-30388 C-30018-5, -6 RA066-30026 4 RA105-00200 RA063-30025
1978 and on, 8.00-6 D-30660-2 RA164-30615-2 C-30018-5, -6 RA066-30026 4 RA105-00200 RA063-30025
207 with Cleveland Brakes
207 Series, Skywagon, Stationair 7, 8 207-00001 and on 40-75B RA164-01501 30-52F RA066-10500 4 RA105-00200 RA063-01100
8.00-6 tire 40-75D RA164-03601 30-52E RA066-10500 4 RA105-00200 RA063-01100
208
208 Caravan 1 1 thru 138 40-179 RA164-22201 30-163 RA066-03300 8 RA177-00300 RA068-02800 RA063-02500 RA154-03000
Pressure Plate Assy. > RA073-08500
Pressure Plate Assy. > RA073-08502
139 and on 40-179 RA164-22201 30-182 RA066-03300 8 RA177-00300 RA068-02800 RA063-02500 RA154-03000
Pressure Plate Assy. > RA073-08500
Pressure Plate Assy. > RA073-08502
139 and on w/upgrade 199-281 40-179 RA164-22201 30-182A RA066-15300 8 RA177-00300 RA068-02800 RA063-02500 RA154-03000
Pressure Plate Assy. > RA073-08500
Pressure Plate Assy. > RA073-08502
208B 1 thru 53 40-179 RA164-22201 30-163 RA066-03300 8 RA177-00300 RA068-02800 RA063-02500 RA154-03000
Pressure Plate Assy. > RA073-08500
Pressure Plate Assy. > RA073-08502
54 and on 40-179 RA164-22201 30-182 RA066-03300 8 RA177-00300 RA068-02800 RA063-02500 RA154-03000
Pressure Plate Assy. > RA073-08500
Pressure Plate Assy. > RA073-08502
139 and on w/upgrade 199-281 40-179 RA164-22201 30-182A RA066-15300 8 RA177-00300 RA068-02800 RA063-02500 RA154-03000
Pressure Plate Assy. > RA073-08500
Pressure Plate Assy. > RA073-08502
210 with Cleveland Brakes
210, 210A, 210B, 210C, Centurian Conversion Kit, 6.00-6 199-60 40-75B RA164-01501 30-52 RA066-10500 4 RA105-00200 RA063-01100
210K, 210L, 210M
210C 210-58086 thru 40-21 RA164-00900 30-45 RA066-11100 2 RA105-00200
210-58220
210D thru M 210-58221 thru 40-75B RA164-01501 30-52 RA066-10500 4 RA105-00200 RA063-01100
210-62954
T210F, T210K, T210L, T210M, T210N T210-0001 and on
P210N Conversion Kit, 6.00-6 199-60A 40-75B RA164-01501 30-52U RA066-10500 4 RA105-00200 RA063-01100
P21000001 thru
P21000150
P210 1984 40-142 RA164-07800 30-127C RA066-06200 4 RA177-00300 RA068-01100 RA063-01100
210N 210-62955 and on 40-775B RA164-01501 30-52V RA066-10500 4 RA105-00200 RA063-01100
P210N 1979 and on
210 with McCauley Brakes - also see McCauley Disc Comparison Guide in Section 4.
210 Series 1974 D-30063-2 N/A D-301118-3, -4 RA066-30026 4 RA105-00200 RA063-30025
1974 to 1978 D-30291-2 RA164-30398 D-301118-3, -4 RA066-30026 4 RA105-00200 RA063-30025
1978 and on D-30660-3 RA164-30615-3 D-301118-3, -4 RA066-30026 4 RA105-00200 RA063-30025
350 / 400 Corvalis
350 Corvalis (LC42-550FG) 40-406A RA164-02504 30-233A RA066-06200 4 RA177-00300 RA068-01100 RA063-01100
400 Corvalis (LC41-550FG) 40-406A RA164-02504 30-233A RA066-06200 4 RA177-00300 RA068-01100 RA063-01100
300 Series Multi Engine
303, T303 Crusader 1982 and on 40-142 RA164-07800 30-127A RA066-06200 4 RA177-00300 RA068-01100 RA063-01100
6.80-8 Tire 40-98H RA164-08406 30-66F RA066-04400 4 RA177-00300 RA068-01700
305A, B, C, D, E, F 1951 and on 40-97E RA164-02601 30-63K RA066-10500 2 RA105-00200 RA063-01200
USAF O-1A, -1E, -1G 40-75F RA164-01501 30-52L RA066-10500 4 RA105-00200 RA063-01100
310, 310A thru 310H, E310H, Conversion Kit, 6.50-10 199-64 40-40B RA164-01406 30-28D RA066-03300 6 RA177-00400 RA068-01600 RA154-03000
310I, 310J, 310J-1, E310J, 310K,
310L, 310N, 310P, T310P, 310Q,
T310Q, 310R, T310R
310 Series 1976 to 1981 40-40A RA164-00806 30-28B RA066-03300 6 RA177-00400 RA068-01600 RA154-03000
1981 and on 40-40D RA164-20206 30-28B RA066-03300 6 RA177-00400 RA068-01600 RA154-03000
320, 320-1, 320A, 320B, 320C, Skynight Conversion Kit, 6.50-10 199-64 40-40B RA164-01406 30-28D RA066-03300 6 RA177-00400 RA068-01600
320D, 320E, 320F
335 1979 and on 40-40A RA164-00806 30-28B RA066-03300 6 RA177-00400 RA068-01600 RA154-03000
336 Skymaster 336-0001 thru 40-67A RA164-02504 30-61 RA066-10500 4 RA105-00200 RA068-01100 RA063-01100
336-0098
336-009 and on 40-75B RA164-01501 30-52 RA066-10500 4 RA105-00200 RA063-01100
337, 337A (USAF 02B) Skymaster 1965 to 1966 40-96A, RA164-02504 30-61 RA066-10500 4 RA105-00200 RA063-01100
337-0001 thru 40-96E
337-0525
337B 1967 40-96A, RA164-02504 30-61D RA066-10500 4 RA105-00200 RA068-01100 RA063-01100
337-0526 thru 40-96E
337-0619
337 B thru D 337-0620 thru 40-96A, RA164-02504 30-61D RA066-10500 4 RA105-00200 RA068-01100 RA063-01100
337-1193 40-96E
Note: Please confirm brake assembly number. Part numbers with ‘RA’ are Rapco products. For Reference ONLY. For installation eligibility see FAA-PMA supplement.
