P. 53

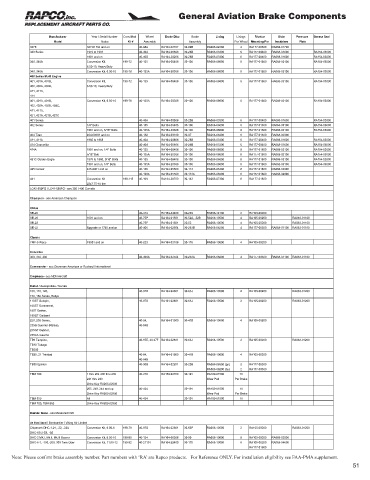

General Aviation Brake Components
Manufacturer Year / Serial Number Conv/Mod Wheel Brake Disc Brake Lining Linings Rivet or Shim Pressure Grease Seal
Model Notes Kit # Assembly Assembly Per Wheel Mounting Pin Insulators Plate
337E 337-01194 and on 40-98A RA164-02707 30-69B RA066-02200 4 RA177-00300 RA068-01700
340 Series 1972 to 1981 40-40A RA164-00806 30-28B RA066-03300 6 RA177-00400 RA068-01600 RA154-03000
1981 and on 40-40D RA164-20206 30-28B RA066-03300 6 RA177-00400 RA068-01600 RA154-03000
340, 340A Conversion Kit, 199-72 40-135 RA164-06406 30-100 RA066-06600 8 RA177-01600 RA068-03100 RA154-03000
6.50-10, Heavy Duty
340, 340A Conversion Kit, 6.50-10 199-76 40-135A RA164-20306 30-100 RA066-06600 8 RA177-01600 RA068-03100 RA154-03000
400 Series Multi Engine
401, 401A, 401B, Conversion Kit, 199-72 40-135 RA164-06406 30-100 RA066-06600 8 RA177-01600 RA068-03100 RA154-03000
402, 402A, 402B, 6.50-10, Heavy Duty
411, 411A,
414
401, 401A, 401B, Conversion Kit, 6.50-10 199-76 40-135A RA164-20306 30-100 RA066-06600 8 RA177-01600 RA068-03100 RA154-03000
402, 402A, 402B, 402C,
411, 411A,
421, 421A, 421B, 421C
401 Series 40-40A RA164-00806 30-28B RA066-03300 6 RA177-00400 RA068-01600 RA154-03000
402 Series 1/4" Bolts 40-135 RA164-06406 30-100 RA066-06600 8 RA177-01600 RA068-03100 RA154-03000
1981 and on, 5/16" Bolts 40-135A RA164-20306 30-100 RA066-06600 8 RA177-01600 RA068-03100 RA154-03000
404 Titan 404-00001 and on 40-132 RA164-09100 30-97 RA066-06400 8 RA177-01600 RA068-02900
411, 411A 1965 to 1968 40-40A RA164-00806 30-28B RA066-03300 6 RA177-00400 RA068-01600 RA154-03000
414 Chancellor 40-40A RA164-00806 30-28B RA066-03300 6 RA177-00400 RA068-01600 RA154-03000
414A 1981 and on, 1/4" Bolts 40-135 RA164-06406 30-100 RA066-06600 8 RA177-01600 RA068-03100 RA154-03000
5/16" Bolt 40-135A RA164-20306 30-100 RA066-06600 8 RA177-01600 RA068-03100 RA154-03000
421C Golden Eagle 1976 to 1980, 5/16" Bolts 40-135 RA164-06406 30-100 RA066-06600 8 RA177-01600 RA068-03100 RA154-03000
1981 and on, 1/4" Bolts 40-135A RA164-20306 30-100 RA066-06600 8 RA177-01600 RA068-03100 RA154-03000
425 Corsair 425-0001 and on 40-138 RA164-05500 30-113 RA066-06400 8 RA177-01600 RA068-02900
40-138A RA164-05500 30-113A RA066-06400 8 RA177-01600 RA068-02900
441 Conversion Kit 199-115 40-169 RA164-20700 30-143 RA066-07300 8 RA177-01600
22x7.75-10 tire
LC42-550FG / LC41-550FG - see 350 / 400 Corvalis
Champion - see American Champion
Cirrus
SR-20 40-414 RA164-24400 30-239 RA066-14100 2 RA105-00200
SR-20 1601 and on 40-75P RA164-01501 30-52A, -52B RA066-10500 4 RA105-00200 RA063-01100
SR-22 40-75P RA164-01501 30-52 RA066-10500 4 RA105-00200 RA063-01100
SR-22 Upgrade or 1740 and on 40-406 RA164-02504 30-233B RA066-06200 4 RA177-00300 RA068-01100 RA063-01100
Classic
YMF-5 Waco F5001 and on 40-223 RA164-03106 30-176 RA066-10800 4 RA105-00200
Columbia
300, 350, 400 40-406A RA164-02504 30-233A RA066-06200 4 RA177-00300 RA068-01100 RA063-01100
Commander - see Grumman American or Rockwell International
Croplease - see NDN Aircraft
Daher / Aerospatiale / Socata
100, 110, 125, 40-97D RA164-02601 30-63J RA066-10500 2 RA105-00200 RA063-01200
150, 180 Series, Rallye
110ST Galopin, 40-97D RA164-02601 30-63J RA066-10500 2 RA105-00200 RA063-01200
160ST Garnement,
180T Gairien,
180GT Gailaard
220, 235 Series, 40-84, RA164-01900 30-41B RA066-10600 4 RA105-00200
235G Guerrier (Rallye), 40-84B
235GT Gabrier,
235CA Gaucho
TB9 Tampico, 40-97E, 40-97F RA164-02601 30-63J RA066-10500 2 RA105-00200 RA063-01200
TB10 Tobago
TB200
TB20, 21 Trinidad 40-84, RA164-01900 30-41B RA066-10600 4 RA105-00200
40-84B
TB30 Epsilon 40-90B RA164-02201 30-23B RA066-06500 (pp) 2 RA177-00300
RA066-06200 (bp) 2 RA177-00300
TBM 700 1 thru 204 206 thru 239 40-270 RA159-02700 30-191 RA109-01500 10
241 thru 243 Wear Pad Per Brake
Drive Key RA205-02900
205, 240, 244 and up 40-434 30-191 RA109-01500 10
Drive Key RA205-02900 Wear Pad Per Brake
TBM 850 All 40-434 30-191 RA109-01500 10
TBM 700, TBM 850 Drive Key RA205-02900
Daimler Benz - see Messerschmitt
de Havilland / Bombardier / Viking Air Limited
Chipmunk DHC-1-21, -22, -22A Conversion Kit, 6.00-6 199-79 40-97D RA164-02601 30-63P RA066-10500 2 RA105-00200 RA063-01200
DHC-1B-2-S3, -S5
DHC-2 MK.l, Mk.ll, Mk.lll Beaver Conversion Kit, 8.50-10 199-95 40-134 RA164-06306 30-99 RA066-10600 8 RA105-00200 RA068-02800
DHC-6-1, -100,-200, 300 Twin Otter Conversion Kit, 11.00-12 199-92 40-21101 RA164-22400 30-170 RA066-10000 8 RA105-00200 RA068-04600
RA177-01600
Note: Please confirm brake assembly number. Part numbers with ‘RA’ are Rapco products. For Reference ONLY. For installation eligibility see FAA-PMA supplement. Note: Please confirm brake assembly number. Part numbers with ‘RA’ are Rapco products. For Reference ONLY. For installation eligibility see FAA-PMA supplement.
