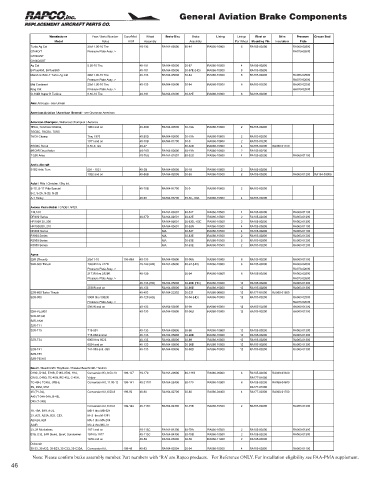

General Aviation Brake Components

Manufacturer Year / Serial Number Conv/Mod Wheel Brake Disc Brake Lining Linings Rivet or Shim Pressure Grease Seal
Model Notes Kit # Assembly Assembly Per Wheel Mounting Pin Insulators Plate
Turbo Ag Cat 29x11.00-10 Tire 40-133 RA164-05806 30-84 RA066-10800 8 RA105-00200 RA063-02500
G164D/T Pressure Plate Assy. > RA073-02600
G164D/ST
G164D/SST
Ag Cat 8.50-10 Tire 40-101 RA164-03006 30-67 RA066-10800 4 RA105-00200
B-Plus/450, B-Plus/650 40-101 RA164-03006 30-67E (HD) RA066-10800 8 RA105-00200
Marsh G164C-T Turbo Ag Cat 29x11.00-10 Tire 40-133 RA164-05806 30-84 RA066-10800 8 RA105-00200 RA063-02500
Pressure Plate Assy. > RA073-02600
Mid Continent 29x11.00-10 Tire 40-133 RA164-05806 30-84 RA066-10800 8 RA105-00200 RA063-02500
King Cat Pressure Plate Assy. > RA073-02600
G-164B Super B Turbine 8.50-10 Tire 40-101 RA164-03006 30-67E RA066-10800 8 RA105-00200
Alon Aircoupe - see Univair
American Aviation / American General - see Grumman American
American Champion / Bellanca/ Champion / Aeronca
7ECA, 7AGCAA Citabria, 1964 and on 40-28D RA164-00500 30-19A RA066-10600 2 RA105-00200
7GCBC, 7KCBA, 7SRS
7ACA Champ Thru 1970 40-28D RA164-00500 30-19A RA066-10600 2 RA105-00200
1971 and on 40-78B RA164-01700 30-9 RA066-10600 2 RA105-00200
8GCBC Scout 8.50-6 Tire 40-47 30-32B RA066-10600 4 RA105-00200 RA068-01100
8KCAB Decathalon 40-28D RA164-00500 30-19A RA066-10600 2 RA105-00200
T-250 Aries 40-75G RA164-01501 30-52S RA066-10600 4 RA105-00200 RA063-01100
Arctic Aircraft
S1B2 Artic Tern 001 - 1021 40-2B RA164-00500 30-18 RA066-10600 2 RA105-00200
1022 and on 40-86B RA164-02000 30-55 RA066-10500 2 RA105-00200 RA063-01200 RA154-03000
Aviat / Pitts / Christen / Sky Int.
S-1S, S-1T Pitts Special 40-78B RA164-01700 30-9 RA066-10600 2 RA105-00200
S-2, S-2A, S-2B, S-2B
A-1 Husky 40-60 RA164-06700 30-60, -60A RA066-10600 4 RA105-00200
Avions Pierre Robin / CADB / APEX
140,160 RA164-03601 30-52T RA066-10500 4 RA105-00200 RA063-01100
DR400 Series 40-97D RA164-02601 30-63E RA066-10500 2 RA105-00200 RA063-01200
HR100/120, 200 RA164-02601 30-63D, -63E RA066-10500 2 RA105-00200 RA063-01200
HR100/200, 210 RA164-03601 30-52N RA066-10500 4 RA105-00200 RA063-01100
DR400 Series N/A 30-52T RA066-10500 4 RA105-00200 RA063-01100
R1000 Series N/A 30-63E RA066-10500 2 RA105-00200 RA063-01200
R2000 Series N/A 30-63E RA066-10500 2 RA105-00200 RA063-01200
R3000 Series N/A 30-63E RA066-10500 2 RA105-00200 RA063-01200
Ayres
S2R (Thrush) 29x11-10 199-68A 40-133 RA164-05806 30-98A RA066-10800 6 RA105-00200 RA063-01300
S2R-600 Thrush 1939R thru 217R 40-129 (HD) RA164-05606 30-94 (HD) RA066-10800 8 RA105-00200 RA063-02500
Pressure Plate Assy. > RA073-02600
2173R thru 2529R 40-129 30-94 RA066-10800 8 RA105-00200 RA063-02500
Pressure Plate Assy. > RA073-02600
40-133 (HD) RA164-05806 30-98D (HD) RA066-10800 12 RA105-00200 RA063-01300
2530R and on 40-133 RA164-05806 30-98D RA066-10800 12 RA105-00200 RA063-01300
S2R-660 Turbo Thrush 40-403 RA164-22202 30-231 RA066-06600 12 RA177-01600 RA068-01600
S2R-800 500R thru 5082R 40-129 (HD) 30-94 (HD) RA066-10800 12 RA105-00200 RA063-02500
Pressure Plate Assy. > RA073-02600
5083R and on 40-133 RA164-05806 30-98 RA066-10800 12 RA105-00200 RA063-01300
S2R-PLZ600 40-133 RA164-05806 30-98D RA066-10800 12 RA105-00200 RA063-01300
S2R-R1340
S2R-1820
S2R-T11
S2R-T15 T15-001 40-133 RA164-05806 30-98 RA066-10800 12 RA105-00200 RA063-01300
T15-002 and on 40-133 RA164-05806 30-98D RA066-10800 12 RA105-00200 RA063-01300
S2R-T34 6000 thru 6023 40-133 RA164-05806 30-98 RA066-10800 12 RA105-00200 RA063-01300
6024 and on 40-133 RA164-05806 30-98D RA066-10800 12 RA105-00200 RA063-01300
S2R-T41 T41-089 and -090 40-133 RA164-05806 30-98D RA066-10800 12 RA105-00200 RA063-01300
S2R-T65
S2R-T65HG
Beech / Beechcraft / Raytheon / Hawker Beechcraft / Textron
D18C, D18S, E18S, E18S-9700, H18, Conversion Kit, 8.50-10 199-127 40-170 RA164-20900 30-144B RA066-09000 8 RA105-00200 RA068-03300
G18S, C45G, TC-45G, RC-45J, C-45H, Volpar RA177-01600
TC-45H, TC45J, JRB-6, Conversion Kit, 11.00-12 199-141 40-21101 RA164-22400 30-170 RA066-10000 8 RA105-00200 RA068-04600
3N, 3NM, 3TM RA177-01600
45 (TY-34), Conversion Kit, 6.50-8 199-50 40-98 RA164-02706 30-66 RA066-04400 4 RA177-00300 RA068-01700
A45 (T-34A-34A, B-45),
D45 (T-34B)
Conversion Kit, 6.00-6 199-124 40-113C RA164-04300 30-75B RA066-10500 2 RA105-00200 RA063-01200
19, 19A, B19, A-23, MB-1 thru MB-521
23, A23, A23A, B23, C23, M--2 thru M-1361
A23-24, A24 MA-1 thru MA-268
A24R MC-2 thru MC-97
23, 24 Musketeer, 1971 and on 40-113C RA164-04300 30-79A RA066-10500 2 RA105-00200 RA063-01200
B19, C33, 24R Sierra, Sport, Sundowner 1974 to 1977 40-113C RA164-04300 30-75B RA066-10500 2 RA105-00200 RA063-01200
1978 and on 40-59 RA164-06900 30-59 RA066-11200 2 RA105-00200
Debonair
35-33, 35-A33, 35-B33, 35-C33, 35-C33A, Conversion Kit, 199-49 40-83 RA164-02504 30-54 RA066-10500 4 RA105-00200 RA063-01100
Note: Please confirm brake assembly number. Part numbers with ‘RA’ are Rapco products. For Reference ONLY. For installation eligibility see FAA-PMA supplement.
