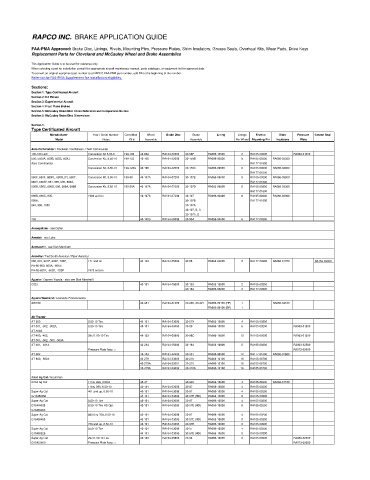

RAPCO INC. BRAKE APPLICATION GUIDE

FAA-PMA Approved: Brake Disc, Linings, Rivets, Mounting Pins, Pressure Plates, Shim Insulators, Grease Seals, Overhaul Kits, Wear Pads, Drive Keys
Replacement Parts for Cleveland and McCauley Wheel and Brake Assemblies
This Application Guide is to be used for reference only.
When selecting a part for installation consult the appropriate aircraft maintenace manual, parts catalogue, or equipment list for approved data.
To convert an original equipment part number to a RAPCO FAA-PMA part number, add RA to the beginning of the number.
Refer to the FAA-PMA Supplement for installation eligibility.
Sections:
Section 1: Type Certificated Aircraft
Section 2: Kit Planes
Section 3: Experimental Aircraft
Section 4: Float Plane Brakes
Section 5: McCauley Brake Disc Cross Reference and Comparison Guides
Section 6: McCauley Brake Disc Dimensions
Section 1:
Type Certificated Aircraft
Manufacturer Year / Serial Number Conv/Mod Wheel Brake Disc Brake Lining Linings Rivet or Shim Pressure Grease Seal
Model Notes Kit # Assembly Assembly Per Wheel Mounting Pin Insulators Plate
Aero Commander / Rockwell / Gulfstream / Twin Commander
100-180 Lark Conversion Kit 6.00-6 199-188 40-86A RA164-02000 30-56F RA066-10500 2 RA105-00200 RA063-01200
500, 5500A, 500B, 500S, 500U, Conversion Kit, 8.50-10 199-122 40-198 RA164-22000 30-159B RA066-09000 8 RA105-00200 RA068-03300
Aero Commander RA177-01600
Conversion Kit, 8.50-10 199-122A 40-198 RA164-22000 30-159C RA066-09000 8 RA105-00200 RA068-03300
RA177-01600
560F, 680F, 680FL, 680FL(P), 680T, Conversion Kit, 8.50-10 199-80 40-107A RA164-07200 30-107E RA066-09000 8 RA105-00200 RA068-03300
680V, 680W, 681, 685, 690, 690A, RA177-01600
690B, 690C, 690D, 695, 685A, 695B Conversion Kit, 8.50-10 199-80A 40-107A RA164-07200 30-107D RA066-09000 8 RA105-00200 RA068-03300
RA177-01600
690B, 690C, 695, 1980 and on 40-107A RA164-07200 30-107 RA066-09000 8 RA105-00200 RA068-03300
695A, 30-107B RA177-01600
840, 980, 1000 30-107A
30-107, B, C
30-107A, D
700 40-128C RA164-05006 30-93A RA066-02200 6 RA177-00300
Aerospatiale - see Daher
Aerofab - see Lake
Aermacchi - see Siah Marchetti
Aerostar / Ted Smith Aerostar / Piper Aerostar
600, 601, 601P, 602P, 700P, 171 and on 40-124 RA164-05006 30-88 RA066-02200 8 RA177-00300 RA068-01700 RA154-03000
PA-60-600, 600A, -601B
PA-60-601P, -602P, -700P 1975 and on
Agusta / Caproni Vizzola - also see Siah Marchetti
C22J 40-151 RA164-08500 30-133 RA066-10500 2 RA105-00200
30-164 RA066-06200 2 RA177-00300
Agusta Westland / Leonardo-Finmeccanica
AW169 40-481 RA164-21000 30-290, 30-321 RA066-09100 (PP) 1 RA068-04100
RA066-09100 (BP) 1
Air Tractor
AT-300 8.50-10 Tire 40-101 RA164-03006 30-67X RA066-10800 4 RA105-00200
AT-301, -302, -302A, 8.50-10 Tire 40-101 RA164-03006 30-89 RA066-10800 6 RA105-00200 RA063-01300
AT-400A
AT-400, -402, 29x11.00-10 Tire 40-133 RA164-05806 30-98C RA066-10800 12 RA105-00200 RA063-01300
AT-501, -502, -503, -503A
AT-401, -401A 40-234 RA164-05606 30-184 RA066-10800 8 RA105-00200 RA063-02500
Pressure Plate Assy. > RA073-02600
AT-602 40-403 RA164-22202 30-231 RA066-06600 12 RA177-01600 RA068-01600
AT-802, -802A 40-279 RA164-23000 30-210 RA066-13100 16 RA105-06700
40-279A RA164-23001 30-210 RA066-13100 16 RA105-06700
40-279A RA164-23002 30-210A RA066-13100 16 RA105-06700
Allied Ag Cat / Grumman
G164 Ag Cat 1 thru 399, 8.50-6 40-47 30-32C RA066-10600 4 RA105-00200 RA068-01100
1 thru 399, 8.50-10 40-101 RA164-03006 30-67 RA066-10800 4 RA105-00200
Super Ag Cat 401 and up, 8.50-10 40-101 RA164-03006 30-67 RA066-10800 4 RA105-00200
G/164B/450 40-101 RA164-03006 30-67E (HD) RA066-10800 8 RA105-00200
Super Ag Cat 8.50-10 Tire 40-101 RA164-03006 30-67 RA066-10800 4 RA105-00200
G164A/600 8.50-10 Tire HD Opt. 40-101 RA164-03006 30-67E (HD) RA066-10800 8 RA105-00200
G164B/450
Super Ag Cat 660 thru 708, 8.50-10 40-101 RA164-03006 30-67 RA066-10800 4 RA105-00200
G164B/450 40-101 RA164-03006 30-67E (HD) RA066-10800 8 RA105-00200
709 and up, 8.50-10 40-101 RA164-03006 30-67E RA066-10800 8 RA105-00200
Super Ag Cat 8.50-10 Tire 40-101 RA164-03006 30-67 RA066-10800 4 RA105-00200
G164B/525 40-101 RA164-03006 30-67E (HD) RA066-10800 8 RA105-00200
Super Ag Cat 29x11.00-10 Tire 40-133 RA164-05806 30-84 RA066-10800 8 RA105-00200 RA063-02500
G164C/600 Pressure Plate Assy. > RA073-02600
