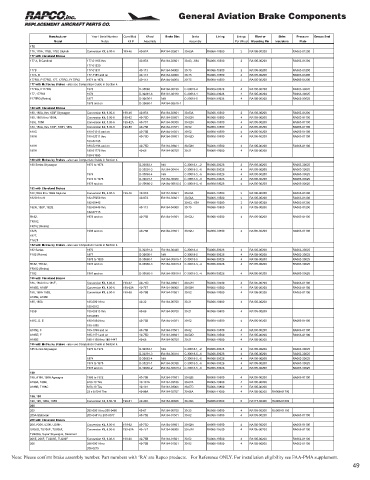

Page 51 - Rapco Catalog
P. 51
General Aviation Brake Components
Manufacturer Year / Serial Number Conv/Mod Wheel Brake Disc Brake Lining Linings Rivet or Shim Pressure Grease Seal
Model Notes Kit # Assembly Assembly Per Wheel Mounting Pin Insulators Plate
175
175, 175A, 175B, 175C Skylark Conversion Kit, 6.00-6 199-46 40-97A RA164-02601 30-63A RA066-10500 2 RA105-00200 RA063-01200
177 with Cleveland Brakes
177 A, B Cardinal 177-01165 thru 40-97A RA164-02601 30-63, -63A RA066-10500 2 RA105-00200 RA063-01200
177-01530
177B 177-01531 40-113 RA164-04000 30-75 RA066-10500 2 RA105-00200 RA063-01200
177A, B 177-1165 and on 40-113 RA164-04000 30-75 RA066-10500 2 RA105-00200 RA063-01200
177RG, F177RG, 177, 177RG, F177RG 1971 to 1974 40-113 RA164-04000 30-75 RA066-10500 2 RA105-00200 RA063-01200
177 with McCauley Brakes - also see Comparison Guide in Section 4.
177RG, F177RG 1975 D-30580 RA164-30195 C-30018-4 RA066-30026 4 RA105-00200 RA063-30025
177, 177RG 1976 D-30291-6 RA164-30440 C-30018-4 RA066-30026 4 RA105-00200 RA063-30025
F177RG (Reims) 1977 D-30600-1 N/A C-30018-5 RA066-30026 4 RA105-00200 RA063-30025
1978 and on D-30660-1 RA164-30615-1
180 with Cleveland Brakes
180, 180A, thru 180F Skywagon Conversion Kit, 6.00-6 199-46 40-97A RA164-02601 30-63A RA066-10500 2 RA105-00200 RA063-01200
180, 180A thru 180H, Conversion Kit, 8.00-6 199-62 40-75D RA164-03601 30-52N RA066-10500 4 RA105-00200 RA063-01100
180J, 180K Conversion Kit, 8.00-6 199-62A 40-75T RA164-08300 30-52N RA066-10500 4 RA105-00200 RA063-01100
180, 180A, thru 180F, 180H, 180J Conversion Kit, 6.00-6 199-60 40-75B RA164-01501 30-52 RA066-10500 4 RA105-00200 RA063-01100
180G 180-51313 and on 40-75B RA164-01501 30-52 RA066-10500 4 RA105-00200 RA063-01100
180H 180-52011 thru 40-75D RA164-03601 30-52D RA066-10500 4 RA105-00200 RA063-01100
180-52195
180H 180-52196 and on 40-75D RA164-03601 30-52N RA066-10500 4 RA105-00200 RA063-01100
180H 180-51775 thru 40-66 RA164-00700 30-21 RA066-10600 4 RA105-00200
189-51993
180 with McCauley Brakes - also see Comparison Guide in Section 4.
180 Series Skywagon 1973 to 1974 D-30063-1 N/A C-30018-1, -2 RA066-30026 2 RA105-00200 RA063-30025
D-30291-3 RA164-30414 C-30018-5, -6 RA066-30026 4 RA105-00200 RA063-30025
1974 D-30063-4 N/A C-30018-5, -6 RA066-30026 4 RA105-00200 RA063-30025
1974 to 1978 D-30291-1 RA164-30388 C-30018-5, -6 RA066-30026 4 RA105-00200 RA063-30025
1978 and on D-30660-2 RA164-30615-2 C-30018-5, -6 RA066-30026 4 RA105-00200 RA063-30025
182 with Cleveland Brakes
182,182A thru 182G Skylane Conversion Kit, 6.00-6 199-46 40-97A RA164-02601 30-63A RA066-10500 2 RA105-00200 RA063-01200
182G thru N 182-55059 thru 40-97A RA164-02601 30-56A RA066-10500 2 RA105-00200 RA063-01200
182-60445 30-63, -63A RA066-10500 2 RA105-00200 RA063-01200
182N, 182P, 182Q 182-60446 thru 40-113 RA164-04000 30-75 RA066-10500 2 RA105-00200 RA063-01200
182-67715
R182, 1978 and on 40-75B RA164-01501 30-52U RA066-10500 4 RA105-00200 RA063-01100
TR182,
FR182 (Reims)
182S, 1996 and on 40-75B RA164-01501 30-52U RA066-10500 4 RA105-00200 RA063-01100
182T,
T182T
182 with McCauley Brakes - also see Comparison Guide in Section 4.
182 Series 1976 D-30291-6 RA164-30440 C-30018-4 RA066-30026 4 RA105-00200 RA063-30025
F182 (Reims) 1977 D-30600-1 N/A C-30018-5 RA066-30026 4 RA105-00200 RA063-30025
1978 to 1980 D-30660-1 RA164-30615-1 C-30018-5 RA066-30026 4 RA105-00200 RA063-30025
R182, TR182, 1978 and on D-30660-3 RA164-30615-3 C-30018-3, -4 RA066-30026 4 RA105-00200 RA063-30025
FR182 (Reims)
T182 1981 and on D-30660-3 RA164-30615-3 C-30018-3, -4 RA066-30026 4 RA105-00200 RA063-30025
185 with Cleveland Brakes
185, 185A thru 185E, Conversion Kit, 8.00-6 199-62 40-75D RA164-03601 30-52N RA066-10500 4 RA105-00200 RA063-01100
A185E, A185F Conversion Kit, 8.00-6 199-62A 40-75T RA164-08300 30-52N RA066-10500 4 RA105-00200 RA063-01100
185, 185A 185B, Conversion Kit, 6.00-6 199-60 40-75B RA164-01501 30-52 RA066-10500 4 RA105-00200 RA063-01100
A185E, A185F
185, 185A 185-0001 thru 40-32 RA164-00700 30-21 RA066-10600 4 RA105-00200
185-0512
185B 185-00513 thru 40-66 RA164-00700 30-21 RA066-10600 4 RA105-00200
185-0653
185C, D, E 185-0054 thru 40-75B RA164-01501 30-52 RA066-10500 4 RA105-00200 RA063-01100
185-1095
A185E, F 185-1096 and on 40-75B RA164-01501 30-52 RA066-10500 4 RA105-00200 RA063-01100
A185E, F 185-1471 and on 40-75D RA164-03601 30-52D RA066-10500 4 RA105-00200 RA063-01100
A185E 185-1150 thru 185-1447 40-66 RA164-00700 30-21 RA066-10600 4 RA105-00200
185 with McCauley Brakes - also see Comparison Guide in Section 4.
185 Series Skywagon 1973 to 1974 D-30063-1 N/A C-30018-1, -2 RA066-30026 2 RA105-00200 RA063-30025
D-30291-3 RA164-30414 C-30018-5, -6 RA066-30026 4 RA105-00200 RA063-30025
1974 D-30063-4 N/A C-30018-5, -6 RA066-30026 4 RA105-00200 RA063-30025
1974 to 1978 D-30291-1 RA164-30388 C-30018-5, -6 RA066-30026 4 RA105-00200 RA063-30025
1978 and on D-30660-2 RA164-30615-2 C-30018-5, -6 RA066-30026 4 RA105-00200 RA063-30025
188
188, A188, 188A Agwagon 1966 to 1972 40-75B RA164-01501 30-52B RA066-10500 4 RA105-00200 RA063-01100
A188A, 188B, 8.50-10 Tire 40-101A RA164-03106 30-67A RA066-10800 4 RA105-00200
A188B, T188C 8.50-10 Tire 40-101 RA164-03006 30-67C RA066-10800 4 RA105-00200
22 x 8.00-8 Tire 40-98A RA164-02707 30-66A RA066-11000 4 RA105-00200 RA068-01700
190, 195
190, 195, 195A, 195B Conversion Kit, 6.50-10 199-61 40-40C RA164-00806 30-28C RA066-03300 6 RA177-00400 RA068-01600
205
205 205-0001 thru 205-0480 40-67 RA164-00700 30-35 RA066-10600 4 RA105-00200 RA068-01100
205A Stationair 205-0481 to 205-0577 40-75B RA164-01501 30-52 RA066-10500 4 RA105-00200 RA063-01100
206 with Cleveland Brakes
206, P206, U206, U206F, Conversion Kit, 8.00-6 199-62 40-75D RA164-03601 30-52N RA066-10500 4 RA105-00200 RA063-01100
U206G, TU206E, TU206F, Conversion Kit, 8.00-6 199-62A 40-75T RA164-08300 30-52N RA066-10500 4 RA105-00200 RA063-01100
TU206G, Super Skywagon, Stationair
206E, 206F, TU206E, TU206F Conversion Kit, 6.00-6 199-60 40-75B RA164-01501 30-52 RA066-10500 4 RA105-00200 RA063-01100
206 206-0001 thru 40-75B RA164-01501 30-52 RA066-10500 4 RA105-00200 RA063-01100
206-0275
Note: Please confirm brake assembly number. Part numbers with ‘RA’ are Rapco products. For Reference ONLY. For installation eligibility see FAA-PMA supplement. Note: Please confirm brake assembly number. Part numbers with ‘RA’ are Rapco products. For Reference ONLY. For installation eligibility see FAA-PMA supplement.
49
