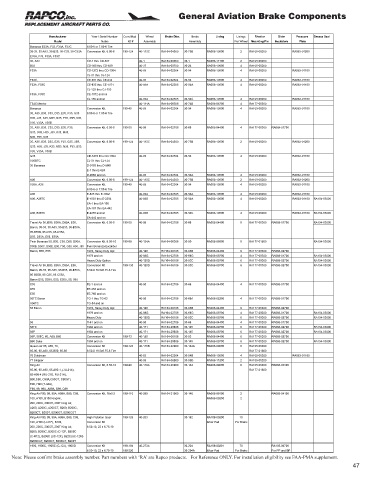

General Aviation Brake Components



                 Manufacturer   Year / Serial Number  Conv/Mod    Wheel  Brake Disc  Brake  Lining   Linings   Rivet or  Shim  Pressure   Grease Seal
                   Model           Notes   Kit #  Assembly      Assembly       Per Wheel  Mounting Pin  Insulators  Plate
           Bonanza E33A, F33, F33A, F33C  6.00-6 or 7.00-6 Tire
           35-33, 35-A33, 35-B33, 35-C33, 35-C33A  Conversion Kit, 6.00-6  199-124  40-113C  RA164-04300  30-75B  RA066-10500  2  RA105-00200  RA063-01200
           E33A, F33, F33A, F33C
           33, A33            CD-1 thru CD-387  40-1  RA164-00900  30-1  RA066-11100  2  RA105-00200
           B33                CD-388 thru CD-639  40-37  RA164-00700  30-24  RA066-10600  4  RA105-00200
           F33A               CD-1272 thru CD-1304  40-83  RA164-02504  30-54  RA066-10500  4  RA105-00200  RA063-01100
                              CJ-31 thru CJ-124
           F33C,              CE-301 thru CE-634  40-83  RA164-02504  30-54  RA066-10500  4  RA105-00200  RA063-01100
           F33A, F33C         CE-635 thru CE-1071  40-83A  RA164-02505  30-54A  RA066-10500  4  RA105-00200  RA063-01100
                              CJ-125 thru CJ-155
           F33A, F33C         CE-1072 and on
                              CJ-156 and on    40-83A  RA164-02505  30-54C  RA066-10500  4  RA105-00200  RA063-01100
           T34C Mentor                         40-111A  RA164-06506  30-74B  RA066-06700  4  RA177-00300
           Bonanza            Conversion Kit,  199-49  40-83  RA164-02504  30-54  RA066-10500  4  RA105-00200  RA063-01100
           35, A35, B35, C35, D35, E35, F35, G35  6.00-6 or 7.00-6 Tire
           H35, J35, K35, M35, N35, P35, 35R, S35,
           V35, V35A, V35B
           35, A35, B35, C35, D35, E35, F35,  Conversion Kit, 6.50-8  199-50  40-98  RA164-02706  30-66  RA066-04400  4  RA177-00300  RA068-01700
           G35, 35R, H35, J35, K35, M35,
           N35, P35, S35
           35, A35, B35, D35, E35, F35, G35, 35R,  Conversion Kit, 6.00-6  199-124  40-113C  RA164-04300  30-75B  RA066-10500  2  RA105-00200  RA063-01200
           G33, H35, J35, K35, M35, N35, P35, S35,
           V35, V35A, V35B
           G33                CD-1272 thru CD-1304  40-83  RA164-02504  30-54  RA066-10500  4  RA105-00200  RA063-01100
           V35BTC             CJ-31 thru CJ-124
           36 Bonanza         D-9193 thru D-9861
                              E-1 thru E-824
                              D-9862 and on    40-83  RA164-02504  30-54A  RA066-10500  4  RA105-00200  RA063-01100
           A36                Conversion Kit, 6.00-6  199-124  40-113C  RA164-04300  30-75B  RA066-10500  2  RA105-00200  RA063-01200
           V35A, A36          Conversion Kit,  199-49  40-83  RA164-02504  30-54  RA066-10500  4  RA105-00200  RA063-01100
                              6.00-6 or 7.00-6 Tire
           A36                E-825 thru E-1802  40-83A  RA164-02505  30-54A  RA066-10500  4  RA105-00200  RA063-01100
           A36, A36TC         E-1803 thru E-2254  40-83B  RA164-02505  30-54A  RA066-10500  4  RA105-00200  RA063-01100  RA154-03000
                              EA-1 thru EA-186
                              EA-187 thru EA-442
           A36, B36TC         E-2255 and on    40-83B  RA164-02505  30-54C  RA066-10500  4  RA105-00200  RA063-01100  RA154-03000
                              EA-443 and on
           Travel Air 95, B95, B95A, D95A, E95,    Conversion Kit, 6.50-8  199-50  40-98  RA164-02706  30-66  RA066-04400  8  RA177-00300  RA068-01700  RA154-03000
           Baron, 95-55, 95-A55, 95-B55, 95-B55A,
           95-B55B, 95-C55, 95-C55A,
           D55, D55A, E55, E55A
           Twin Bonanza 50, B50, C50, D50, D50A,   Conversion Kit, 8.50-10  199-88  40-134A  RA164-06306  30-99  RA066-06600  8  RA177-01600  RA154-03000
           D50B, D50C, D50E, E50, F50, G50, H50, J50  Twin Bonanza Excalibur
           Baron, B55, E55    1978, Heavy Duty Opt.  40-128  RA164-06106  30-93B  RA066-04400  6  RA177-00300  RA068-02700
                              1979 and on      40-98G  RA164-02706  30-66G  RA066-09700  4  RA177-00300  RA068-01700  RA154-03000
                              Heavy Duty Option  40-128D  RA164-06106  30-93C  RA066-09700  6  RA177-00300  RA068-02700  RA154-03000
           Travel Air 95, B95, B95A, D95A, E95,   Conversion Kit  199-138  40-128D  RA164-06106  30-93C  RA066-09700  6  RA177-00300  RA068-02700  RA154-03000
           Baron, 95-55, 95-A55, 95-B55, 95-B55A,  6.50-8 19.5x6.75-8 Tire
           95-B55B, 95-C55, 95-C55A,
           Baron D55, D55A, E55, E55A, 58, 58A
           C55                TE-1 and on      40-98  RA164-02706  30-66  RA066-04400  4  RA177-00300  RA068-01700
           D55                TE-452 and on
           E55                TE-768 and on
           56TC Baron         TG-1 thru TG-63  40-98  RA164-02706  30-66A  RA066-02200  4  RA177-00300  RA068-01700
           A56TC              TG-84 and on
           58 Baron           1978, Heavy Duty Opt.  40-128  RA164-06106  30-93B  RA066-04400  6  RA177-00300  RA068-02700
                              1979 and on      40-98G  RA164-02706  30-66G  RA066-09700  4  RA177-00300  RA068-01700  RA154-03000
                              Heavy Duty       40-128D  RA164-06106  30-93C  RA066-09700  6  RA177-00300  RA068-02700  RA154-03000
           58                 TH-1 and on      40-98  RA164-02706  30-66  RA066-04400  4  RA177-00300  RA068-01700
           58TC               1984 and on      40-171  RA164-20806  30-145  RA066-09700  6  RA177-00300  RA068-02700  RA154-03000
           58P                1984 and on      40-171  RA164-20806  30-145  RA066-09700  6  RA177-00300  RA068-02700  RA154-03000
           58P, 58TC, 60, A60, B60  Conversion Kit  199-73  40-128  RA164-06106  30-93  RA066-04400  6  RA177-00300  RA068-02700
           B60 Duke           1984 and on      40-171  RA164-20806  30-145  RA066-09700  6  RA177-00300  RA068-02700  RA154-03000
           Queen Air 65, A65, 70,   Conversion Kit  199-123  40-170B  RA164-22900  30-144A  RA066-09000  8  RA105-00200
           65-80, 65-A80, 65-B80, 65-88  6.50-8 19.5x6.75-8 Tire                   RA177-01600
           76 Dutchess                         40-83  RA164-02504  30-54B  RA066-10500  4  RA105-00200  RA063-01100
           77 Skipper                          40-59  RA164-06900  30-59D  RA066-11200  2  RA105-00200
           King Air           Conversion Kit, 8.50-10  199-90  40-170A  RA164-20900  30-144  RA066-09000  8  RA105-00200  RA068-03300
           65-90, 65-A90, 65-A90-1, (JU-21A),                                      RA177-01600
           65-A90-4 (RU-21E, RU-21H),
           B90,C90, C90A,C90GT, C90GTi,
           E90, H90 (T-44A),
           F90, 99, 99A, A99A, B99, C99
           King Air F90, 99, 99A, A99A, B99, C99,   Conversion Kit, 18x5.5  199-110  40-289  RA164-21000  30-146  RA066-09100  2  RA068-04100
           100, A100, B100 KingAir,                                  RA066-09200  2
           200, 200C, 200CT, 200T King Air,
           A200, A200C, A200CT, B200, B200C,
           B200CT, B200T, B200GT, B200CGT
           King Air F90, 99, 99A, A99A, B99, C99,   High Flotation Gear   199-125  40-203  30-162  RA109-00200  10
           100, A100 (U-21F), B100,   Conversion Kit                 Wear Pad  Per Brake
           200, 200C, 200CT, 200T King Air,   6.50-10, 22 x 6.75-10
           B200, B200C, B200C (C-12F, B200C
           (C-R12), B200C (UC-12F), B22C(UC-12M)
           B200CGT, B200CT, B200GT, B200T
           1900, 1900C, 1900C (C-12J), 1900D  Conversion Kit   199-184  40-273A  30-204  RA109-00201  70  RA105-06700
                              6.50-10, 22 x 6.75-10  199-220  30-204A  Wear Pad  Per Brake  For PP and BP
 Note: Please confirm brake assembly number. Part numbers with ‘RA’ are Rapco products.   For Reference ONLY. For installation eligibility see FAA-PMA supplement.  Note: Please confirm brake assembly number. Part numbers with ‘RA’ are Rapco products.   For Reference ONLY. For installation eligibility see FAA-PMA supplement.
