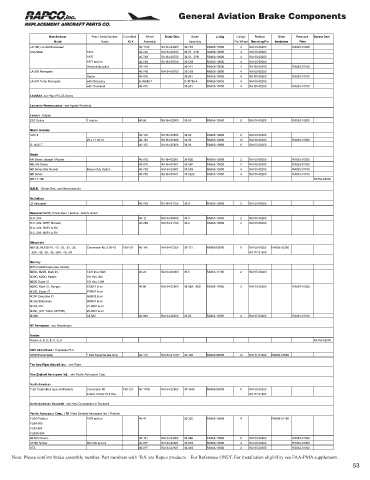

Page 55 - Rapco Catalog

General Aviation Brake Components

Manufacturer Year / Serial Number Conv/Mod Wheel Brake Disc Brake Lining Linings Rivet or Shim Pressure Grease Seal
Model Notes Kit # Assembly Assembly Per Wheel Mounting Pin Insulators Plate
LA-180, LA-200 Buccaneer 40-113X RA164-04000 30-75X RA066-10500 2 RA105-00200 RA063-01200
Amphibian 1974 40-74A RA164-00700 30-51, -51B RA066-10600 4 RA105-00200
1975 40-74B RA164-00700 30-51, -51B RA066-10600 4 RA105-00200
1977 and on 40-74B RA164-00700 30-51B RA066-10600 4 RA105-00200
Heavy duty option 40-418 30-241 RA066-10500 4 RA105-00200 RA063-01100
LA-250 Renegade 40-74B RA164-00700 30-51B RA066-10600 4 RA105-00200
Option 40-418 30-241 RA066-10500 4 RA105-00200 RA063-01100
LA-270 Turbo Renegade with McCauley D-30660-7 D-30793-4 RA066-30026 4 RA105-00200
with Cleveland 40-418 30-241 RA066-10500 4 RA105-00200 RA063-01100
LAVIASA -see Piper PA-25-Series
Leonardo-Finmeccanica - see Agusta Westland
Lovaux - Edgley
EA7 Optica 1 and on 40-86 RA164-02000 30-55 RA066-10500 2 RA105-00200 RA063-01200
Marsh Aviation
S2R-T 40-129 RA164-05606 30-94 RA066-10800 8 RA105-00200
29 x 11.00-10 40-133 RA164-05606 30-98 RA066-10800 12 RA105-00200 RA063-01300
G-164C-T 40-133 RA164-05606 30-94 RA066-10800 8 RA105-00200
Maule
M4 Series Jetasan / Rocket 40-97D RA164-02601 30-63E RA066-10500 2 RA105-00200 RA063-01200
M5, M6 Series 40-97D RA164-02601 30-63E RA066-10500 2 RA105-00200 RA063-01200
M7 Series Star Rocket Heavy Duty Option 40-75D RA164-03601 30-52N RA066-10500 4 RA105-00200 RA063-01100
M9 Series 40-75D RA164-03601 30-52AC RA066-10500 4 RA105-00200 RA063-01100
MXT-7-180 RA154-03000
M.B.B. - Dimler Benz see Messerschmitt
McCulloch
J2 Helicopter 40-78B RA164-01700 30-9 RA066-10600 2 RA105-00200
Messerschmitt / Dimler Benz / Bolkow - Blohm GmbH
B.O.-208 40-12 RA164-00400 30-9 RA066-10600 2 RA105-00200
B.O.-209-150FF Monson, 40-78B RA164-01700 30-9 RA066-10600 2 RA105-00200
B.O.-209-150FV & RV,
B.O.-209-160FV & RV
Mitsubishi
MU-2B, MU-2B-10, -15, -20, -25, -26, Conversion Kit, 8.50-10 199-101 40-148 RA164-07200 30-131 RA066-09000 8 RA105-00200 RA068-03300
-26A, -30, -35, -36, -36A, -40, -60 RA177-01600
Mooney
M10 Cadet/Coupe (see Univair)
M20A, M20B, Mark 20, 1401 thru 3466 40-24 RA164-00900 30-5 RA066-11100 2 RA105-00200
M20C, M20D, Master, 101 thru 260
M20E Super 21 101 thru 1308
M20C, Mark 21, Ranger, 670001 & on 40-86 RA164-02000 30-56A, -56D RA066-10500 2 RA105-00200 RA063-01200
M20E, Super 21 670001 & on
M20F Executive 21 660003 & on
M20G Statesman 680001 & on
M20J, 201, 24-0001 & on
M20K, (231 Turbo, 252TSE) 25-0001 & on
M20M All S/N 40-90A RA164-02300 30-65 RA066-10500 4 RA105-00200 RA063-01100
M7 Aerospace - see Swearingen
Navion
Navion A, B, D, E, F, G, H RA154-03000
NDN Aircraft Ltd. / Croplease PLC.
NDN6 Fieldmaster * Disc Experimental Only 40-175 RA164-21100* 30-149 RA066-06600 12 RA177-01600 RA068-01600
The New Piper Aircraft, Inc. - see Piper
New Zealand Aerospace Ind. - see Pacific Aerospace Corp.
North American
T-28 Trojan (Non type certificated) Conversion Kit 199-123 40-170B RA164-22900 30-144A RA066-09000 8 RA105-00200
6.50-8 19.5x6.75-8 Tire RA177-01600
North American Rockwell - see Aero Commander or Rockwell
Pacific Aerospace Corp., LTD / New Zealand Aerospace Ind. / Fletcher
FU24 Fletcher 1978 and on 40-47 30-32C RA066-10600 4 RA068-01100
FU24-950
FU24-954
FU24A-954
08-600 Cresco 40-101 RA164-03006 30-89E RA066-10800 6 RA105-00200 RA063-01300
CT/4E Airliner S/N 200 and on 40-97F RA164-02601 30-63S RA066-10500 4 RA105-00200 RA063-01200
DT4 40-97F RA164-02601 30-63S RA066-10500 4 RA105-00200 RA063-01200
Note: Please confirm brake assembly number. Part numbers with ‘RA’ are Rapco products. For Reference ONLY. For installation eligibility see FAA-PMA supplement. Note: Please confirm brake assembly number. Part numbers with ‘RA’ are Rapco products. For Reference ONLY. For installation eligibility see FAA-PMA supplement.
