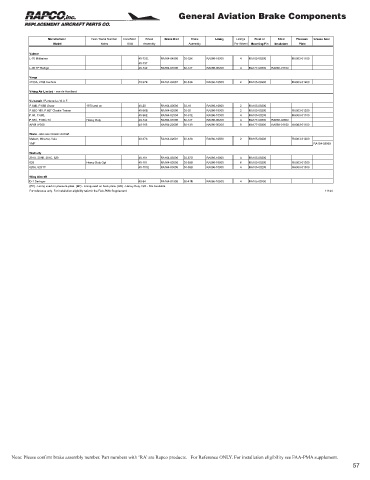

General Aviation Brake Components

Manufacturer Year / Serial Number Conv/Mod Wheel Brake Disc Brake Lining Linings Rivet or Shim Pressure Grease Seal
Model Notes Kit # Assembly Assembly Per Wheel Mounting Pin Insulators Plate
Valmer
L-70 Militrainer 40-75S, RA164-04800 30-52K RA066-10500 4 RA105-00200 RA063-01100
40-75T
L-90 TP Redigo 40-142 RA164-07800 30-127 RA066-06200 4 RA177-00300 RA068-01100
Varga
2150A, 2180 Kachina 40-97E RA164-02601 30-63E RA066-10500 2 RA105-00200 RA063-01200
Viking Air Limited - see de Havilland
Vulcanair / Partenavia / G.A.F.
P.64B, P.66B Oscar 1970 and on 40-28 RA164-00500 30-18 RA066-10600 2 RA105-00200
P.68C-160, P.66T Charlie Trainer 40-86B RA164-02000 30-55 RA066-10500 2 RA105-00200 RA063-01200
P.68, P.68B, 40-96E RA164-02504 30-61E RA066-10500 4 RA105-00200 RA063-01100
P.68C, P.68C-TC Heavy Duty 40-142 RA164-07800 30-127 RA066-06200 4 RA177-00300 RA068-02800
AP68TP300 40-163 RA164-20500 30-139 RA066-06200 8 RA177-00300 RA068-01100 RA063-01100
Waco - also see Classic Aircraft
Meteor, Minerva, Vela 40-97A RA164-02601 30-63A RA066-10500 2 RA105-00200 RA063-01200
YMF RA154-03000
Wetherly
201A, 201B, 201C, 620 40-101 RA164-03006 30-67D RA066-10800 4 RA105-00200
620 Heavy Duty Opt 40-101 RA164-03006 30-89B RA066-10800 6 RA105-00200 RA063-01300
620A, 620TP 40-101E RA164-03006 30-89B RA066-10800 4 RA105-00200 RA063-01300
Wing Aircraft
D-1 Deringer 40-84 RA164-01900 30-41B RA066-10600 4 RA105-00200
(PP) - Lining used on pressure plate. (BP) - Lining used on back plate. (HD) - Heavy Duty. N/A - Not Available
For reference only. For installation eligibility refer to the FAA-PMA Supplement. 11124

Note: Please confirm brake assembly number. Part numbers with ‘RA’ are Rapco products. For Reference ONLY. For installation eligibility see FAA-PMA supplement. Note: Please confirm brake assembly number. Part numbers with ‘RA’ are Rapco products. For Reference ONLY. For installation eligibility see FAA-PMA supplement.
57
