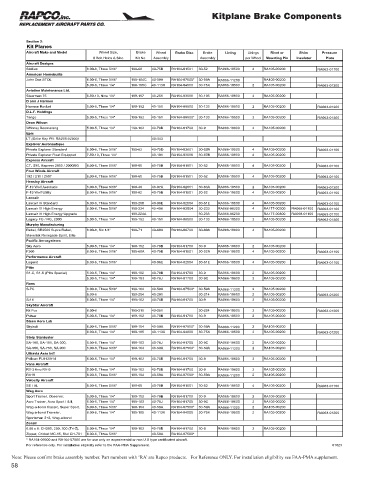

Page 60 - Rapco Catalog
P. 60

Kitplane Brake Components




          Section 2:
          Kit Planes
          Aircraft Make and Model   Wheel Size,  Brake  Wheel  Brake Disc  Brake  Lining   Linings   Rivet or  Shim   Pressure
                                # Bolt Holes & Size  Kit No.  Assembly  Assembly  per Wheel  Mounting Pin  Insulator  Plate
          Aircraft Designs
          Stallion            6.00-6, Three 5/16"   199-60  40-75B  RA164-01501  30-52  RA066-10500  4  RA105-00200  RA063-01100
          American Homebuilts
          John Doe STOL       6.00-6, Three 5/16"   199-104C  40-59A  RA164-07500*  30-59A  RA066-11200  RA105-00200
                              6.00-6, Three 1/4"  199-105C  40-113X  RA164-04000  30-75X  RA066-10500  2  RA105-00200  RA063-01200
          Aviation Maintenance Ltd.
          Stearman 75         6.50-10, Nine 1/4"  199-167  40-256  RA164-03006  30-195  RA066-10800  4  RA105-00200
          D and J Harmon
          Harmon Rocket       5.00-5, Three 1/4"  199-152  40-151  RA164-08500  30-133  RA066-10500  2  RA105-00200  RA063-01200
          D.L.F. Holdings
          Tango               5.00-5, Three 1/4"  199-152  40-151  RA164-09900*  30-133  RA066-10500  2  RA105-00200  RA063-01200
          Dean Wilson
          Whitney Boomerang   5.00-5, Three 1/4"  199-102  40-78B  RA164-01700  30-9  RA066-10600  2  RA105-00200
          Epic
          LT (Drive Key PN: RA205-02900)           40-343
          Explorer Aeronautique
          Private Explorer Standard  6.00-6, Three 5/16"   199-62  40-75D  RA164-03601  30-52N  RA066-10500  4  RA105-00200  RA063-01100
          Private Explorer Float Equipped  7.50-10, Three 1/4"  40-101  RA164-03006  30-67B  RA066-10800  4  RA105-00200
          Express Aircraft
          CT, S90, Express 2000 / 2000RG  6.00-6, Three 5/16"   199-60  40-75B  RA164-01501  30-52  RA066-10500  4  RA105-00200  RA063-01100
          Four Winds Aircraft
          192 / 210 / 250T    6.00-6, Three 5/16"   199-60  40-75B  RA164-01501  30-52  RA066-10500  4  RA105-00200  RA063-01100
          Hensley Aircraft
          F-19 Wolf Aerobatic  6.00-6, Three 5/16"   199-46  40-97A  RA164-02601  30-63A  RA066-10500  2  RA105-00200  RA063-01200
          F-19 Wolf Utility   6.00-6, Three 5/16"   199-62  40-75B  RA164-01501  30-52  RA066-10500  4  RA105-00200  RA063-01100
          Lancair
          Lancair IV Standard  6.00-6, Three 5/16"   199-208  40-96E  RA164-02504  30-61E  RA066-10500  4  RA105-00200  RA063-01100
          Lancair IV High Energy  6.00-6, Three 5/16"   199-224  40-406  RA164-02504  30-233  RA066-06200  4  RA177-00300  RA068-01100  RA063-01100
          Lancair IV High Energy Upgrade    199-224A               30-233  RA066-06200  RA177-00300  RA068-01100  RA063-01100
          Legacy FG / RG, 2000  5.00-5, Three 1/4"  199-152  40-151  RA164-08500  30-133  RA066-10500  2  RA105-00200  RA063-01200
          Murphy Manufacturing
          Rebel, SR2500 Supre Rebel,  6.00-6, Six 1/4"  199-71  40-60A  RA164-06700  30-60A  RA066-10600  4  RA105-00200
          Maverick Renegade Spirit, Elite
          Pacific Aerosystems
          Sky Aero            5.00-5, Three 1/4"  199-102  40-78B  RA164-01700  30-9  RA066-10600  2  RA105-00200
          F300                6.00-6, Three 5/16"   199-60A  40-75B  RA164-01501  30-52N  RA066-10500  4  RA105-00200  RA063-01100
          Performance Aircraft
          Legend              6.00-6, Three 5/16"   40-96E  RA164-02504  30-61E  RA066-10500  4  RA105-00200  RA063-01100
          Pitts
          S1-C, S1-S (Pitts Special)  5.00-5, Three 1/4"  199-102  40-78B  RA164-01700  30-9  RA066-10600  2  RA105-00200
                              5.00-5, Three 1/4"  199-103  40-78J  RA164-01700  30-9C  RA066-10600  2  RA105-00200
          Rans
          S-7C                6.00-6, Three 5/16"   199-104  40-59A  RA164-07500*  30-59A  RA066-11200  2  RA105-00200
                              6.00-6        199-204  40-281        30-214  RA066-10500  2  RA105-00200    RA063-01200
          S-16                5.00-5, Three 1/4"  199-102  40-78B  RA164-01700  30-9  RA066-10600  2  RA105-00200
          SkyStar Aircraft
          Kit Fox             6.00-6        199-215  40-281        30-224  RA066-10500  2  RA105-00200    RA063-01200
          Pulsar              5.00-5, Three 1/4"  199-102  40-78B  RA164-01700  30-9  RA066-10600  2  RA105-00200
          Steen Aero Lab
          Skybolt             6.00-6, Three 5/16"   199-104  40-59A  RA164-07500*  30-59A  RA066-11200  2  RA105-00200
                              6.00-6, Three 1/4"  199-105  40-113X  RA164-04000  30-75X  RA066-10500  2  RA105-00200  RA063-01200
          Stolp Starduster
          SA-100, SA-101, SA-300,   5.00-5, Three 1/4"  199-103  40-78J  RA164-01700  30-9C  RA066-10600  2  RA105-00200
          SA-500, SA-750, SA-900  6.00-6, Three 5/16"   199-104  40-59A  RA164-07500*  30-59A  RA066-11200  2  RA105-00200
          Ultravia Aero Int'l
          Pelican PL912/914   5.00-5, Three 1/4"  199-102  40-78B  RA164-01700  30-9  RA066-10600  2  RA105-00200
          Vans Aircraft
          RV-3 thru RV-9      5.00-5, Three 1/4"  199-102  40-78B  RA164-01700  30-9  RA066-10600  2  RA105-00200
          RV10                6.00-6, Three 5/16"   199-104  40-59A  RA164-07500*  30-59A  RA066-11200  2  RA105-00200
          Velocity Aircraft
          SE / XL             6.00-6, Three 5/16"   199-60  40-75B  RA164-01501  30-52  RA066-10500  4  RA105-00200  RA063-01100
          Wag Aero
          Sport Trainer, Observer,  5.00-5, Three 1/4"  199-102  40-78B  RA164-01700  30-9  RA066-10600  2  RA105-00200
          Acro Trainer, Acro Sport I & ll,  5.00-5, Three 1/4"  199-103  40-78J  RA164-01700  30-9C  RA066-10600  2  RA105-00200
          Wag-a-bond Classic, Super Sport,  6.00-6, Three 5/16"   199-104  40-59A  RA164-07500*  30-59A  RA066-11200  2  RA105-00200
          Wag-a-bond Traveler,  6.00-6, Three 1/4"  199-105  40-113X  RA164-04000  30-75X  RA066-10500  2  RA105-00200  RA063-01200
          Sportsman 2+2, Wag-a bond
          Zenair
          6.00 x 6: CH200, 250, 300 (Tri-Z),  5.00-5, Three 1/4"  199-102  40-78B  RA164-01700  30-9  RA066-10600  2  RA105-00200
          Zipper, Cricket MC-15, Stol CH-701  6.00-6, Three 5/16"   40-59A  RA164-07500*
          * RA164-09900 and RA164-07500 are for use only on experimental or non U.S type certificated aircraft.
          For reference only. For installation eligibility refer to the FAA-PMA Supplement.                    61623

     Note: Please confirm brake assembly number. Part numbers with ‘RA’ are Rapco products.   For Reference ONLY. For installation eligibility see FAA-PMA supplement.
