Section 6 - Cross Reference

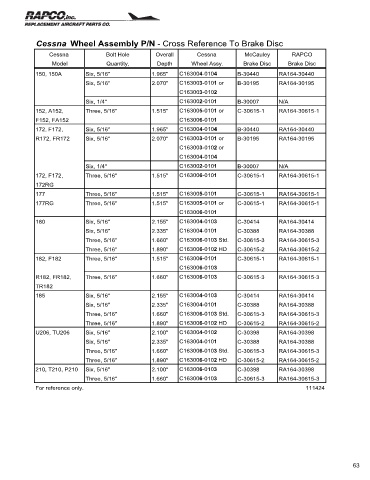

Brake Discs
RAPCO inc. BRAKE COMPONENT CROSS REFERENCE
with Minimum Wear Thickness Specifications
FAA-PMA Approved
Brake Disc, Linings, Overhaul Kits, Rivets, Mounting Pins, Pressure Plates, Shim Insulators, Drive Keys
Wear pads, Grease Seals and Pressure Plate Assemblies
Brake Discs
RAPCO PN Cleveland PN McCauley PN Piper PN Bolt Holes Slotted Minimum Wear
Current Superseded Quantity - Size Disc Thickness In./mm
RA164-00206 164-00206 164-2F 754-650 3 - 1/4" ***
RA164-00300 164-00300 164-3 3 - 5/16" 0.205" / 5.207 mm
RA164-00400 164-00400 164-4 3 - 1/4" 0.162" / 4.115 mm
RA164-00500 164-00500 164-5 754-518 3 - 1/4" 0.157" / 3.988 mm
RA164-00700 164-00700 164-7 3 - 1/4" 0.345" / 8.763 mm
RA164-00806 164-00806 164-8F 9 - 1/4" 0.334" / 8.484 mm
RA164-00900 164-00900 164-9 754-530 3 - 1/4" 0.227" / 5.766 mm
RA164-01000 164-01000 164-10 754-831 6 - 1/4" 0.345" / 8.763 mm
RA164-01300 164-01300 164-13 754-528 3 - 1/4" 0.227" / 5.764 mm
RA164-01406 164-01406 164-14F 9 - 1/4" 0.334" / 8.484 mm
RA164-01501 164-01501 164-15A 3 - 5/16" 0.327" / 8.306 mm
RA164-01506 164-01506 164-15F 3 - 5/16" 0.327" / 8.306 mm
RA164-01600 164-01600 164-16 3 - 5/16" 0.157" / 3.988 mm
RA164-01700 164-01700 164-17 754-617 3 - 1/4" 0.167" / 4.242 mm
RA164-01900 164-01900 164-19 754-545 3 - 5/16" 0.227" / 5.766 mm
RA164-02000 164-02000 164-20 754-535 3 - 5/16" 0.205" / 5.207 mm
RA164-02201 164-02201 164-22A 754-554 3 - 5/16" 0.345" / 8.763 mm
RA164-02300 164-02300 164-23 754-643 3 - 5/16" 0.345" / 8.763 mm
RA164-02504 164-02504 3 - 5/16" 0.445" / 11.303 mm
RA164-02505 164-02505 3 - 5/16" 0.445" / 11.303 mm
RA164-02601 164-02601 164-26A 3 - 5/16" 0.205" / 5.207 mm
RA164-02706 164-02706 164-27F 6 - 5/16" 0.330" / 8.382 mm
RA164-02707 164-02707 164-27G 6 - 5/16" 0.330" / 8.382 mm
RA164-02800 164-02800 164-28 6 - 1/4" 0.227" / 5.766 mm
RA164-03006 164-03006 164-30F 9 - 1/4" 0.282" / 7.163 mm
RA164-03106 164-03106 164-31F 9 - 1/4" 0.163" / 4.140 mm
RA164-03206 164-03206 164-32F 754-651 3 - 1/4" ***
760-538
RA164-03300 164-03300 164-33 754-562 3 - 5/16" 0.235" / 5.969 mm
RA164-03506 164-03506 164-35F 9 - 1/4" 0.260" / 6.604 mm
RA164-03601 164-03601 164-36A 3 - 5/16" 0.327" / 8.306 mm
RA164-03906 164-03906 164-39F 9 - 5/16" 0.600" / 15.240 mm
RA164-04000 164-04000 164-40 3 - 1/4" 0.205" / 5.207 mm
RA164-04300 164-04300 164-43 3 - 1/4" 0.205" / 5.207 mm
RA164-04406 164-04406 164-44F 9 - 1/4" 0.334" / 8.484 mm
RA164-04800 * 164-04800 164-48 3 - 5/16" 0.327" / 8.306 mm
RA164-05006 164-05006 164-50F 456-818 6 - 5/16" 0.475" / 12.065 mm
RA164-05500 164-05500 164-55 9 - 5/16" Slotted 0.492" / 12.497 mm
RA164-05700 164-05700 164-57 754-612 3 - 1/4" 0.525" / 13.335 mm
RA164-05806 164-05806 164-58F 9 - 5/16" 0.395" / 10.033 mm
RA164-06106 164-06106 164-61F 6 - 5/16" Slotted 0.475" / 12.065 mm
RA164-06306 164-06306 164-63F 9 - 5/16" Slotted 0.465" / 11.811 mm
RA164-06406 164-06406 164-64F 9 - 1/4" Slotted 0.465" / 11.811 mm
RA164-06506 164-06506 164-65F 6 - 5/16" 0.240" / 6.096 mm
RA164-06700 164-06700 164-67 6 - 1/4" 0.220" / 5.588 mm
RA164-06900 164-06900 164-69 3 - 5/16" 0.205" / 5.207 mm
RA164-07200 164-07200 164-72 8 - 3/8" Slotted 0.492" / 12.497 mm
RA164-07400 164-07400 164-74 8 - 5/16" Slotted 0.492" / 12.497 mm
RA164-07500 * 164-07500 164-75 3 - 5/16" 0.205" / 5.207 mm
RA164-07700 164-07700 164-77 754-642 9 - 5/16" Slotted 0.470" / 11.938 mm
RA164-07800 164-07800 164-78 6 - 5/16" Slotted 0.450" / 11.43 mm
RA164-07906 164-07906 164-79F 9 - 1/4" Slotted 0.465" / 11.811 mm
RA164-08100 * 164-08100 164-81 6 - 5/16" Slotted 0.450" / 11.430 mm
RA164-08200 164-08200 164-82 6 - 5/16" Slotted 0.327" / 8.306 mm
RA164-08300 164-08300 164-83 6 - 5/16" 0.327" / 8.306 mm
RA164-08406 164-08406 164-84F 6 - 5/16" Slotted 0.330" / 8.302 mm
RA164-08500 164-08500 164-85 3 - 1/4" 0.325" / 8.255 mm
RA164-09100 164-09100 164-91 9 - 5/16" Slotted 0.492" / 12.497 mm
RA164-09900 * 164-09900 164-99 3 - 1/4" 0.275" / 6.985 mm
* Indicates a disc part number for use on experimental aircraft.
*** For minimum wear thickness on Piper Aztec brake disc RA164-00206 or RA164-03206 perform the following procedure. First measure the linings to make sure they
are each above the minium wear of 0.100 inch or ( 0.76 mm ) thick, if not replace. Next measure the cumulative thickness of the two linings, the pressure plate and the
brake disc. If the cumulative thickness of these four items is less than 1.00 inch ( 25.40 mm ) the disc is considered to be below minimum wear thickness and should be
replaced. For reference only.
