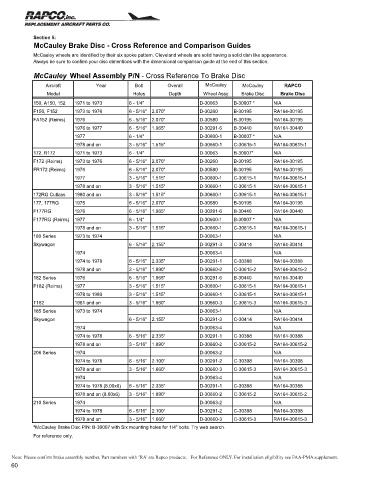

Page 62 - Rapco Catalog
P. 62

Section 5:
            McCauley Brake Disc - Cross Reference and Comparison Guides

            McCauley wheels are identified by their six spoke pattern. Cleveland wheels are solid having a solid dish like appearance.
            Always be sure to confirm your disc dimentions with the dimensional comparison guide at the end of this section.

            McCauley  Wheel Assembly P/N - Cross Reference To Brake Disc
                Aircraft         Year         Bolt      Overall      McCauley    McCauley      RAPCO
                 Model                       Holes       Depth       Wheel Assy.  Brake Disc  Brake Disc
            150, A150, 152  1971 to 1973    6 - 1/4"               D-30063    B-30007 *     N/A
            F150, F152    1973 to 1976      6 - 5/16"  2.070"      D-30260    B-30195       RA164-30195
            FA152 (Reims)  1976             6 - 5/16"  2.070"      D-30580    B-30195       RA164-30195
                          1976 to 1977      6 - 5/16"  1.965"      D-30291-6  B-30440       RA164-30440
                          1977              6 - 1/4"               D-30600-1  B-30007 *     N/A
                          1978 and on       3 - 5/16"  1.515"      D-30660-1  C-30615-1     RA164-30615-1
            172, R172     1971 to 1973      6 - 1/4"               D-30063    B-30007*      N/A
            F172 (Reims)  1973 to 1976      6 - 5/16"  2.070"      D-30260    B-30195       RA164-30195
            FR172 (Reims)  1976             6 - 5/16"  2.070"      D-30580    B-30195       RA164-30195
                          1977              3 - 5/16"  1.515"      D-30600-1  C-30615-1     RA164-30615-1
                          1978 and on       3 - 5/16"  1.515"      D-30660-1  C-30615-1     RA164-30615-1
            172RG Cutlass  1980 and on      3 - 5/16"  1.515"      D-30660-1  C-30615-1     RA164-30615-1
            177, 177RG    1975              6 - 5/16"  2.070"      D-30580    B-30195       RA164-30195
            F177RG        1976              6 - 5/16"  1.965"      D-30291-6  B-30440       RA164-30440
            F177RG (Reims)  1977            6 - 1/4"               D-30600-1  B-30007 *     N/A
                          1978 and on       3 - 5/16"  1.515"      D-30660-1  C-30615-1     RA164-30615-1
            180 Series    1973 to 1974                             D-30063-1                N/A
            Skywagon                        6 - 5/16"  2.155"      D-30291-3  C-30414       RA164-30414
                          1974                                     D-30063-4                N/A
                          1974 to 1978      6 - 5/16"  2.335"      D-30291-1  C-30388       RA164-30388
                          1978 and on       3 - 5/16"  1.890"      D-30660-2  C-30615-2     RA164-30615-2
            182 Series    1976              6 - 5/16"  1.965"      D-30291-6  B-30440       RA164-30440
            F182 (Reims)  1977              3 - 5/16"  1.515"      D-30600-1  C-30615-1     RA164-30615-1
                          1978 to 1980      3 - 5/16"  1.515"      D-30660-1  C-30615-1     RA164-30615-1
            T182          1981 and on       3 - 5/16"  1.660"      D-30660-3  C-30615-3     RA164-30615-3
            185 Series    1973 to 1974                             D-30063-1                N/A
            Skywagon                        6 - 5/16"  2.155"      D-30291-3  C-30414       RA164-30414
                          1974                                     D-30063-4                N/A
                          1974 to 1978      6 - 5/16"  2.335"      D-30291-1  C-30388       RA164-30388
                          1978 and on       3 - 5/16"  1.890"      D-30660-2  C-30615-2     RA164-30615-2
            206 Series    1974                                     D-30063-2                N/A
                          1974 to 1978      6 - 5/16"  2.100"      D-30291-2  C-30398       RA164-30398
                          1978 and on       3 - 5/16"  1.660"      D-30660-3  C-30615-3     RA164-30615-3
                          1974                                     D-30063-4                N/A
                          1974 to 1978 (8.00x6)  6 - 5/16"  2.335"  D-30291-1  C-30388      RA164-30388
                          1978 and on (8.00x6)  3 - 5/16"  1.890"  D-30660-2  C-30615-2     RA164-30615-2
            210 Series    1974                                     D-30063-2                N/A
                          1974 to 1978      6 - 5/16"  2.100"      D-30291-2  C-30398       RA164-30398
                          1978 and on       3 - 5/16"  1.660"      D-30660-3  C-30615-3     RA164-30615-3
            *McCauley Brake Disc P/N: B-30007 with Six mounting holes for 1/4" bolts. Try web search.
            For reference only.



     Note: Please confirm brake assembly number. Part numbers with ‘RA’ are Rapco products.   For Reference ONLY. For installation eligibility see FAA-PMA supplement.
